Wheel rim thickness gauge: RTH

Wheel rim thickness gauge: RTH

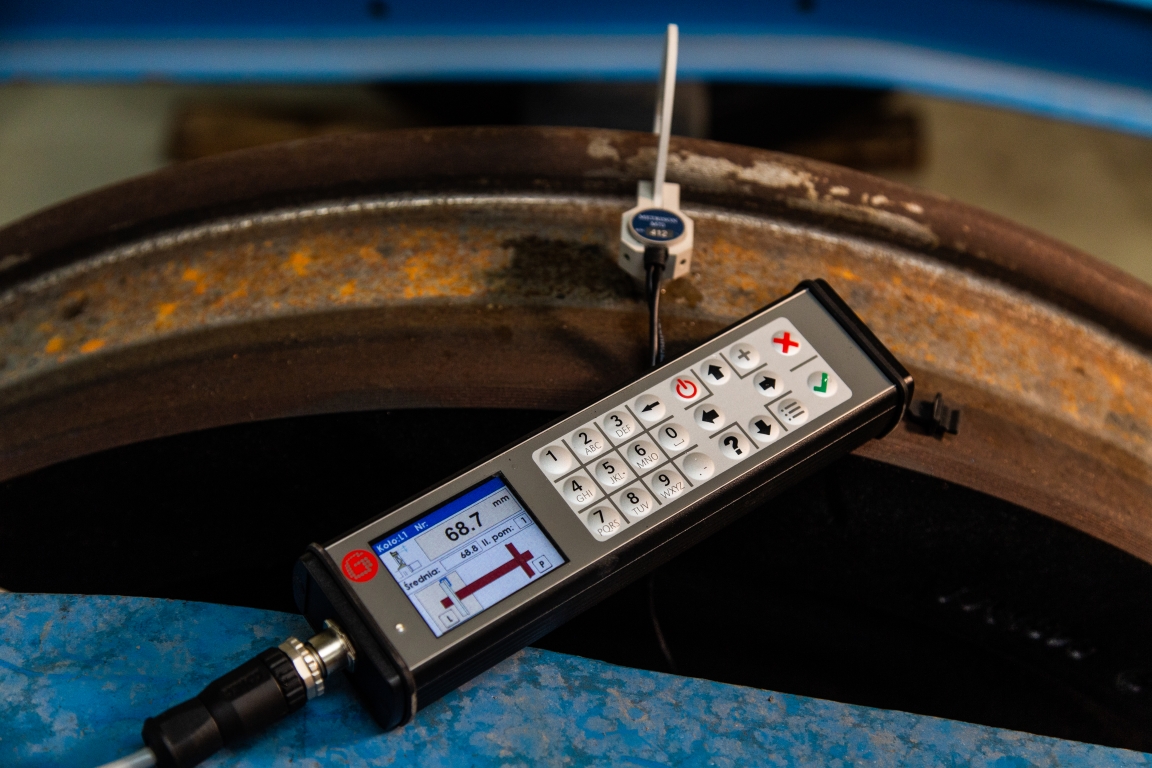

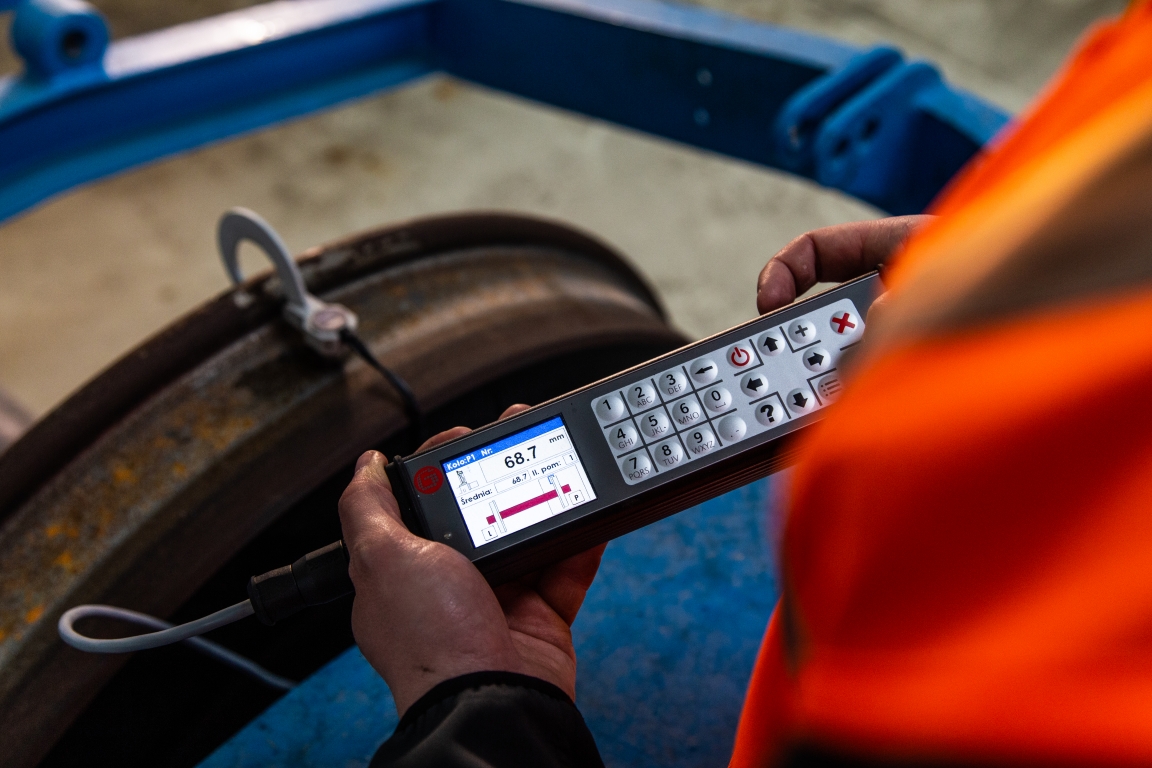

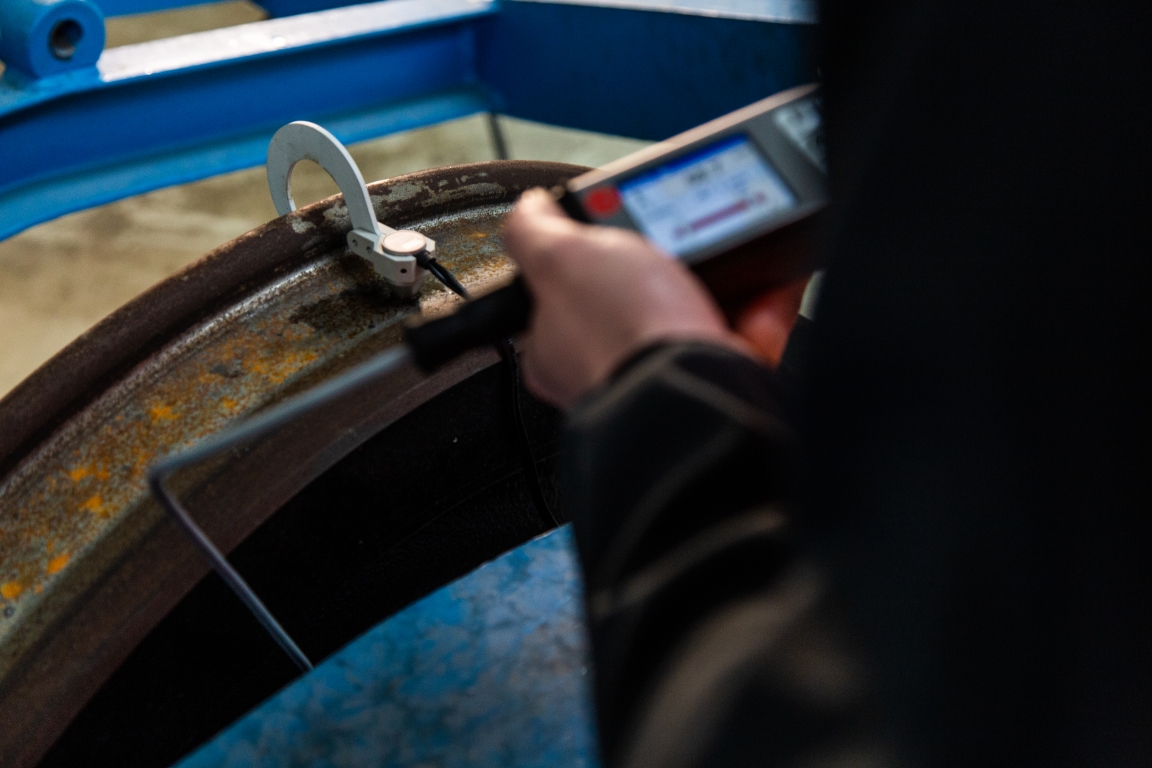

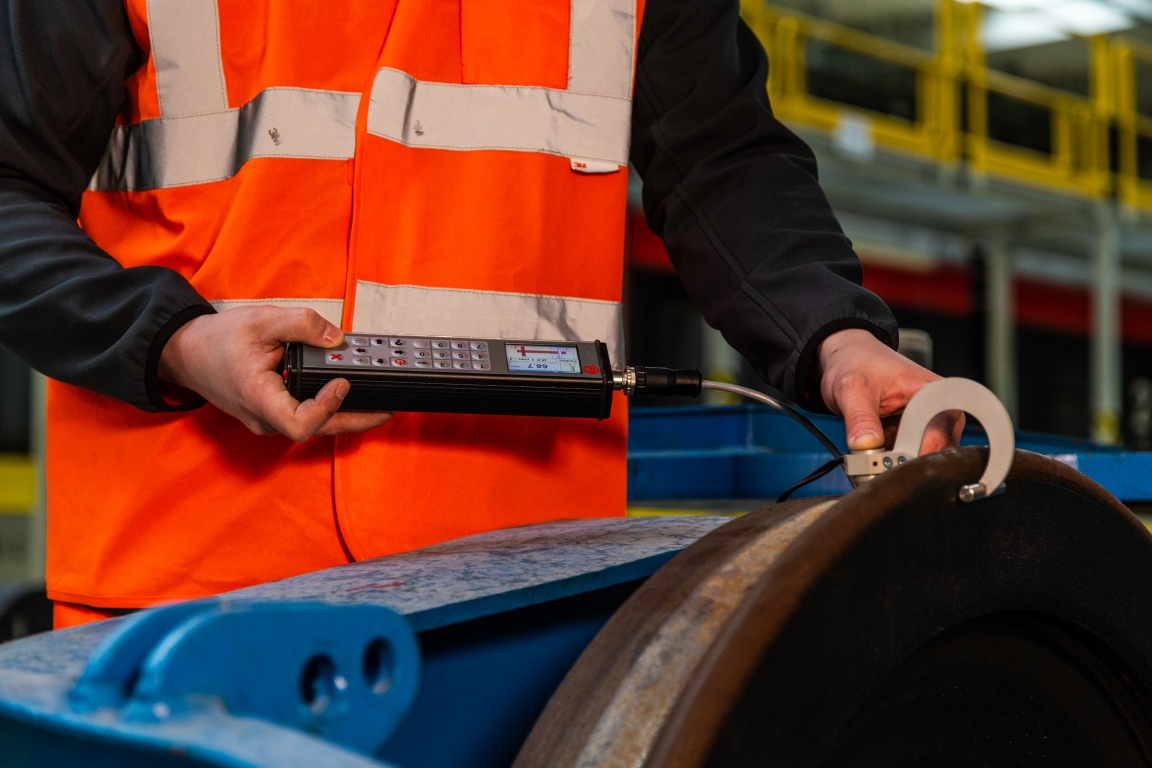

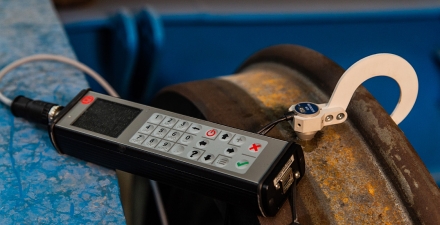

ULTRASONIC RIM THICKNESS MEASUREMENT OF WHEELSET

The device enables quick and accurate measurement of rim thickness; the measurement results can be stored in the electronic memory of the device. The user can specify the limit values of the parameters as required.

The gauge comes with a large colour display and comfortable keyboard. The operator may specify the limit values of the parameters in accordance with the requirements of the relevant railway regulations. The value of the measured parameter exceeding the tolerance is displayed red.

The gauge is delivered with diagnostic software for PCs that allows managing a straightforward analysis of the performed measurements, as well as for the efficient generation of measurement reports. This software allows the saving, visualising and printing of reports with results. Measurement data can be exported to MS Word, MS Excel and PDF formats.

Measurement results can also be entered into an optional P&D system rolling stock wheel data management system within a transport company.

Contents:
  • Rim Thickness Gauge device
  • Charger
  • Transport box
  • PC software, 1 licence
Benefits:
  • Device availability for all dimensions of wheel-sets
  • Measurement results independent of environmental conditions
  • Display is easy to read even in direct sunlight
  • Easy transfer of measurement data via USB port
  • Dedicated software for printing measurement reports, archiving and comparing measurement results
  • Simple and solid basing of the device on the wheel
  • User-friendly one-man operation

Specifications

Rim thickness Accuracy: ±0.1 mm
Ranges 22 … 90 mm
Weight 1,1 kg
Memory capacity 2 000 measurement files
Operating time Up to 20 h
Resolution 0,1 mm
Operating conditions Temperature: -20 … +45 ºC
Humidity: 15 … 85 %, non-condensing
