Railprofile 2D

Railprofile 2D

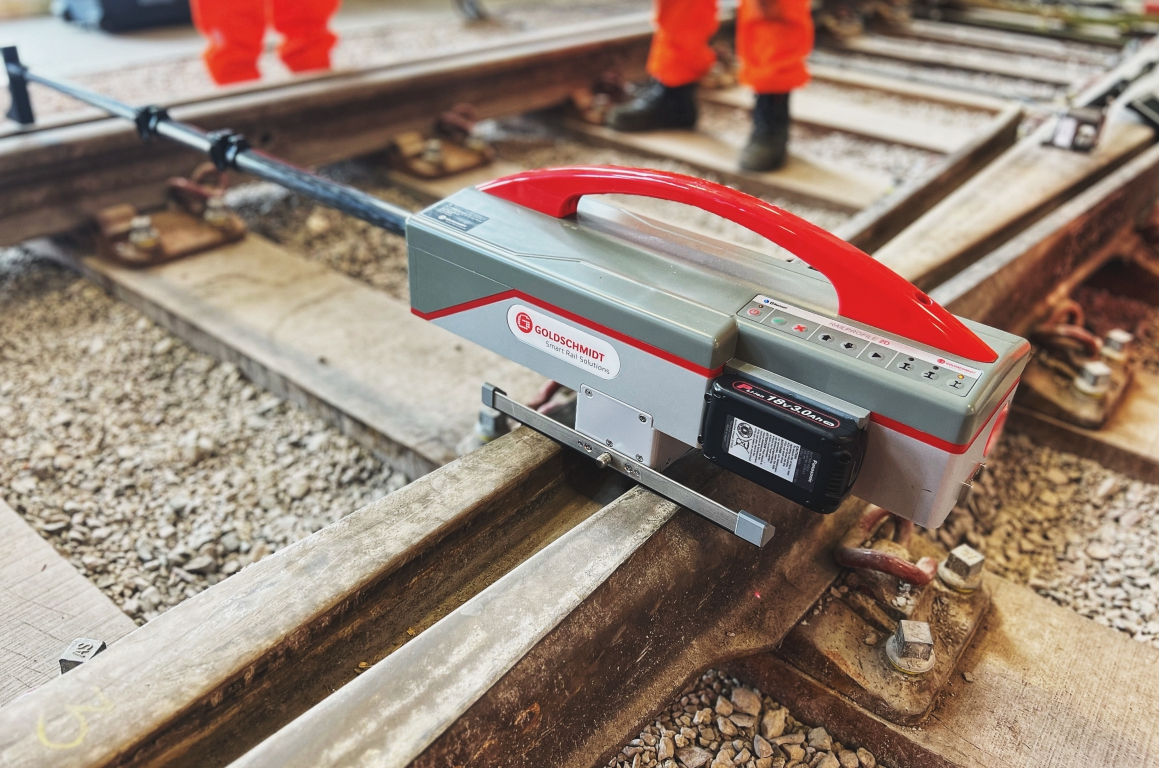

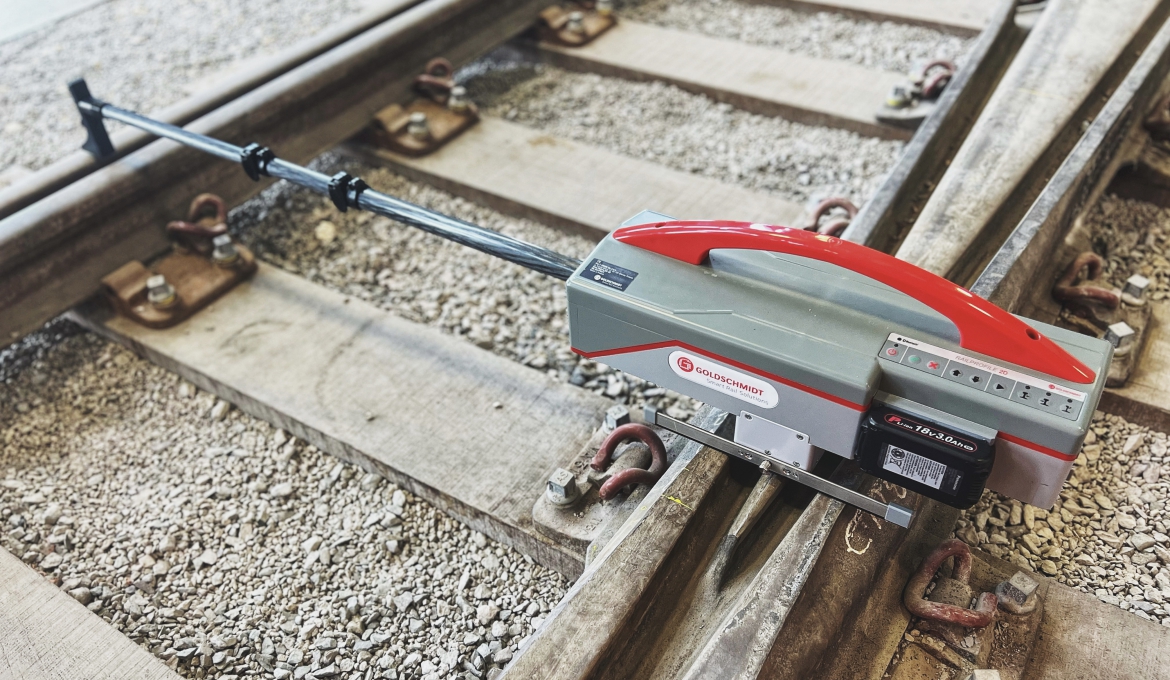

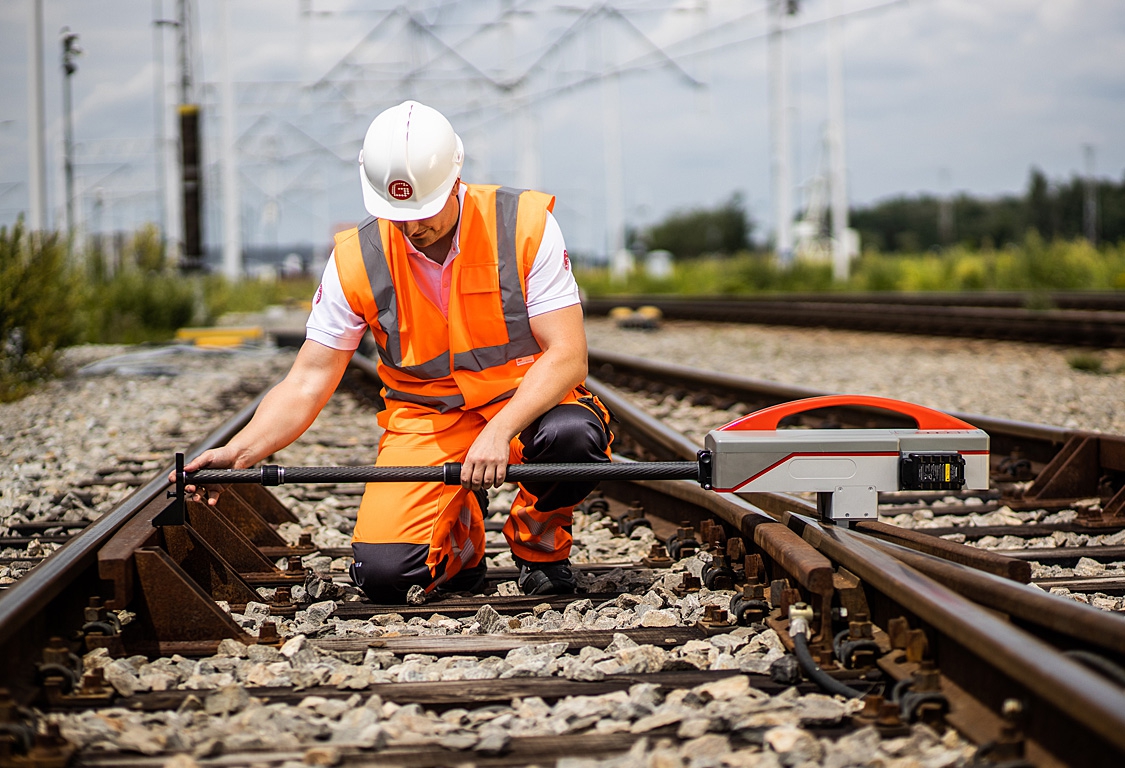

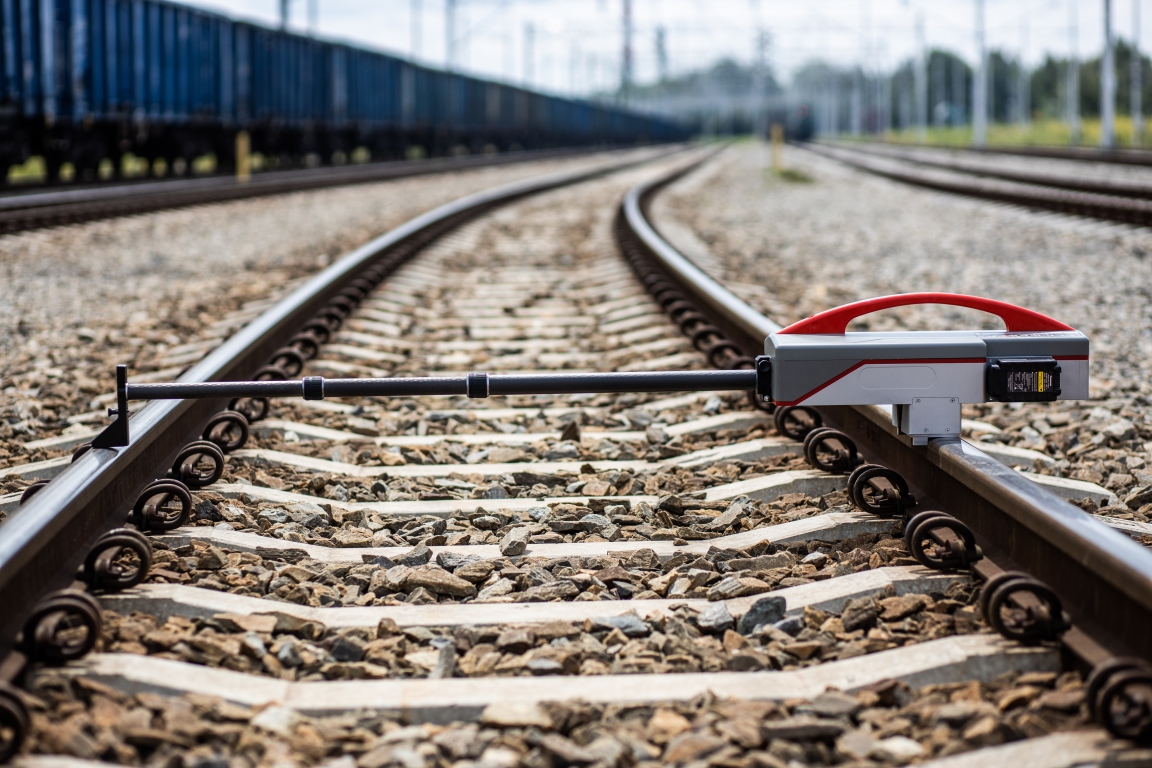

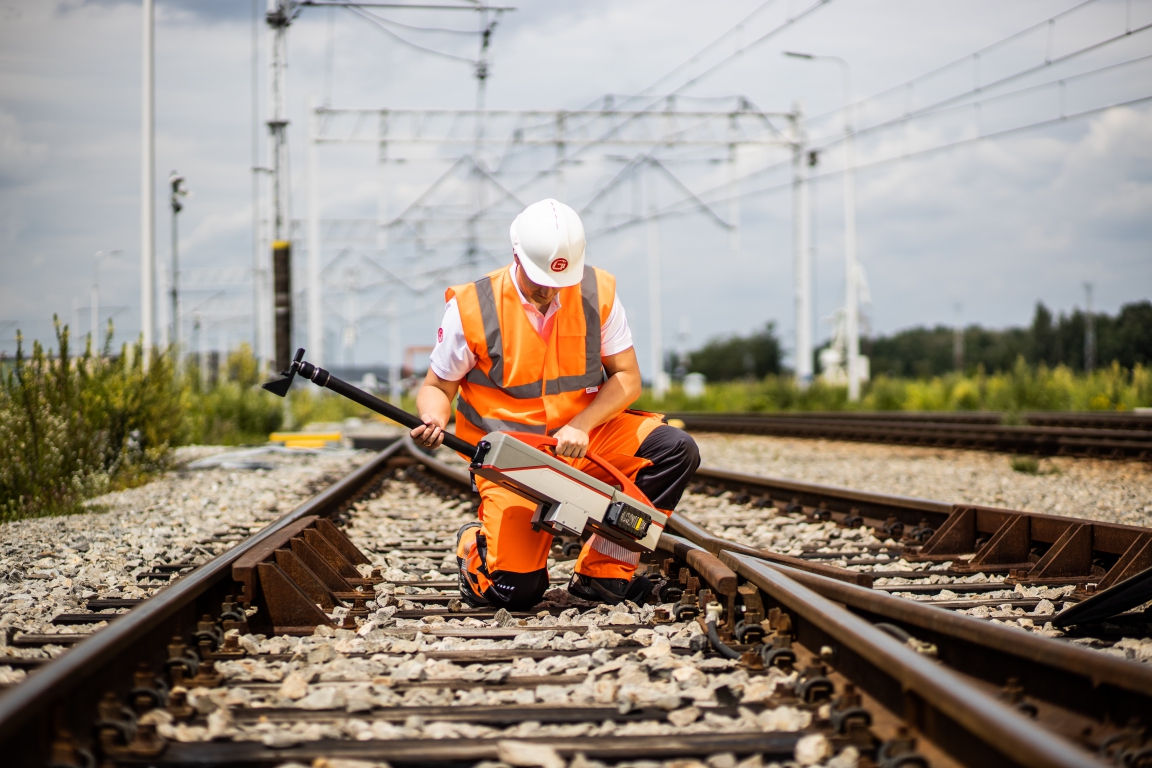

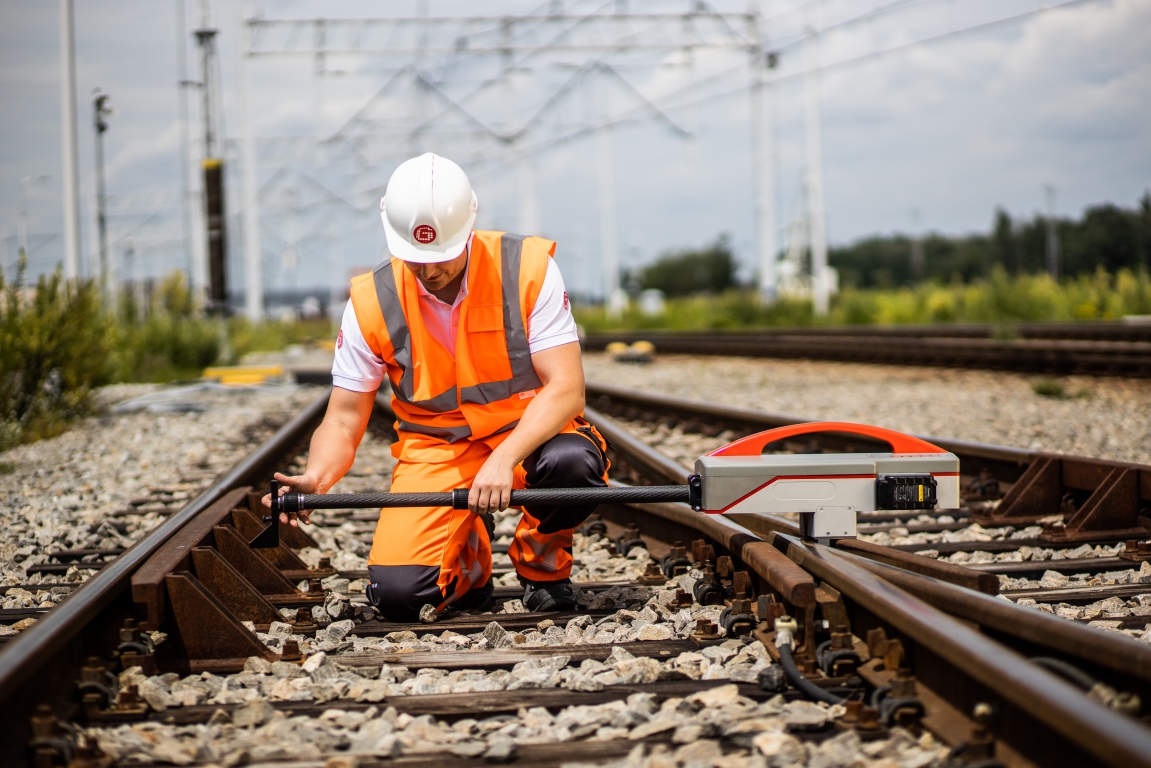

LASER MEASUREMENT OF RAIL HEAD PROFILE

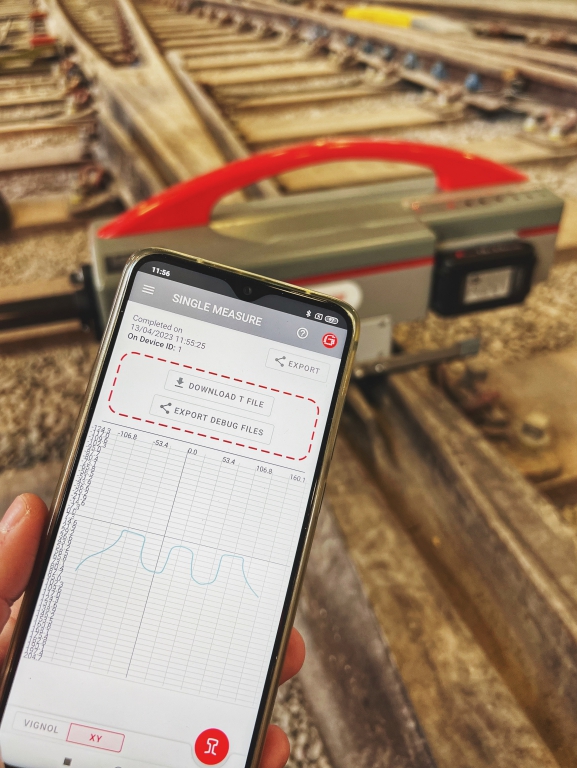

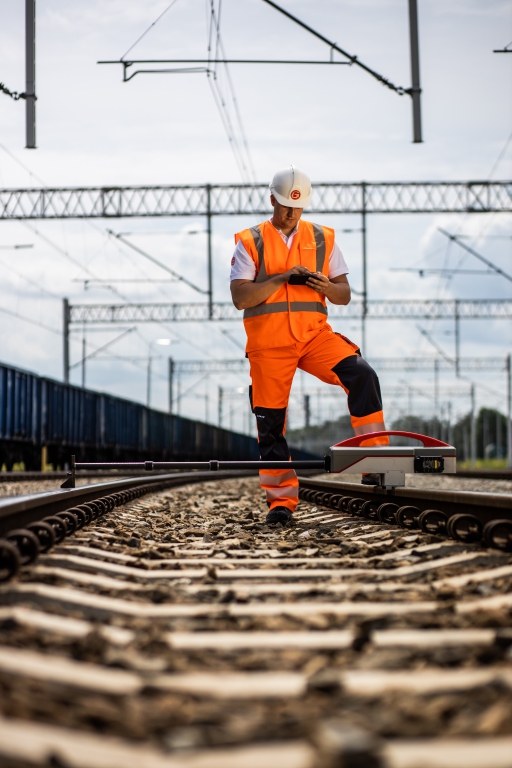

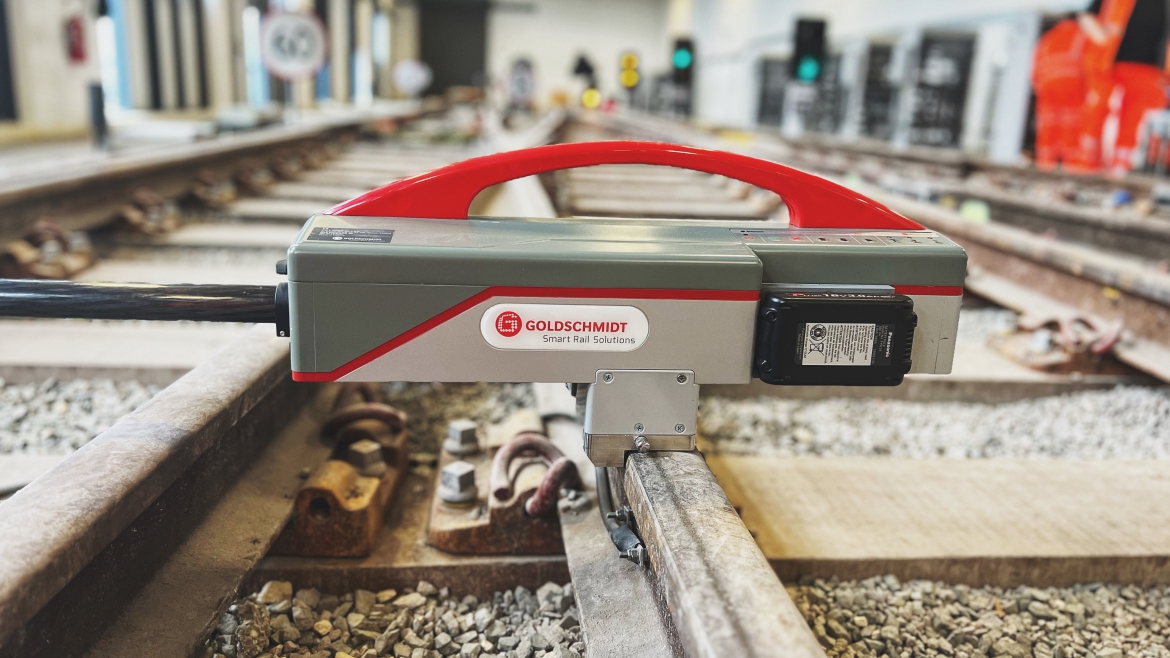

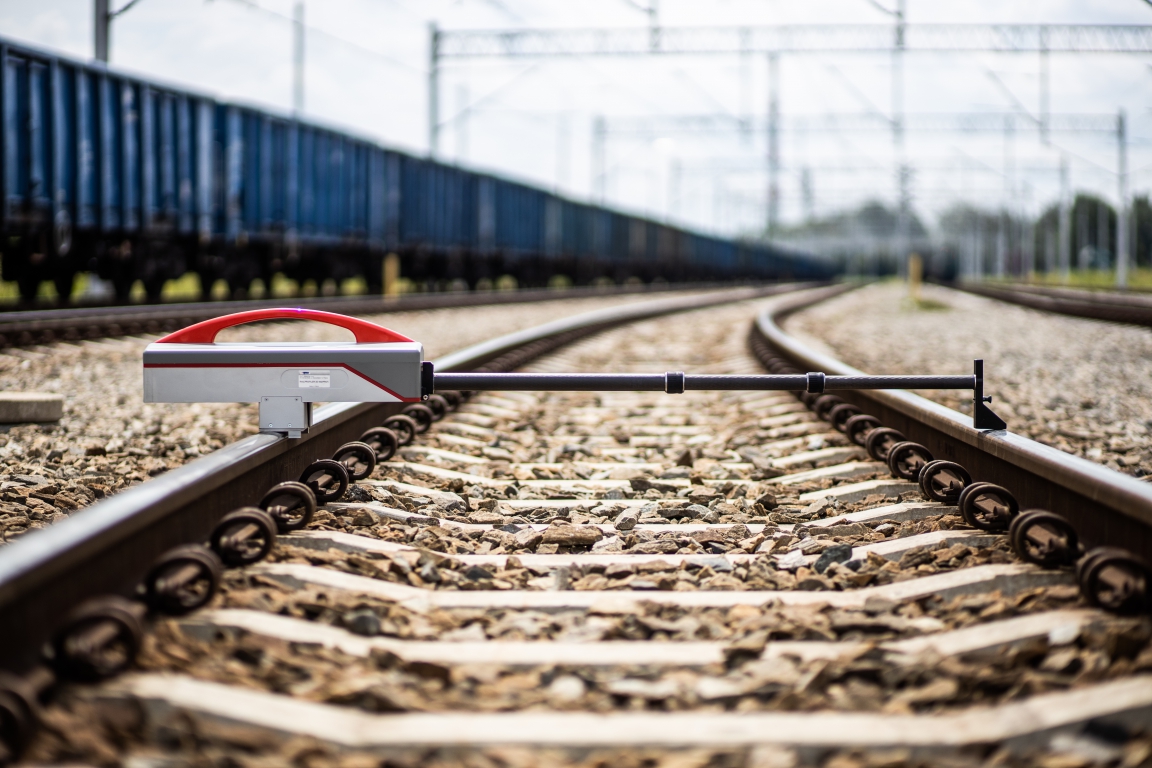

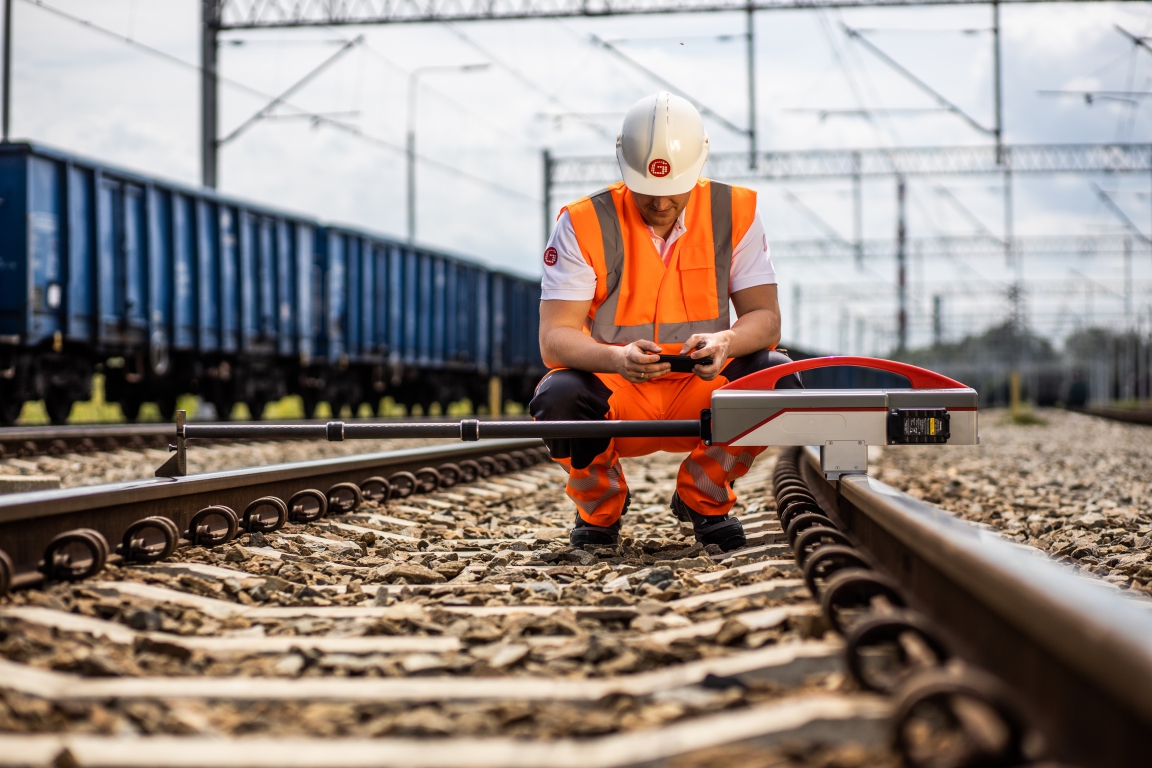

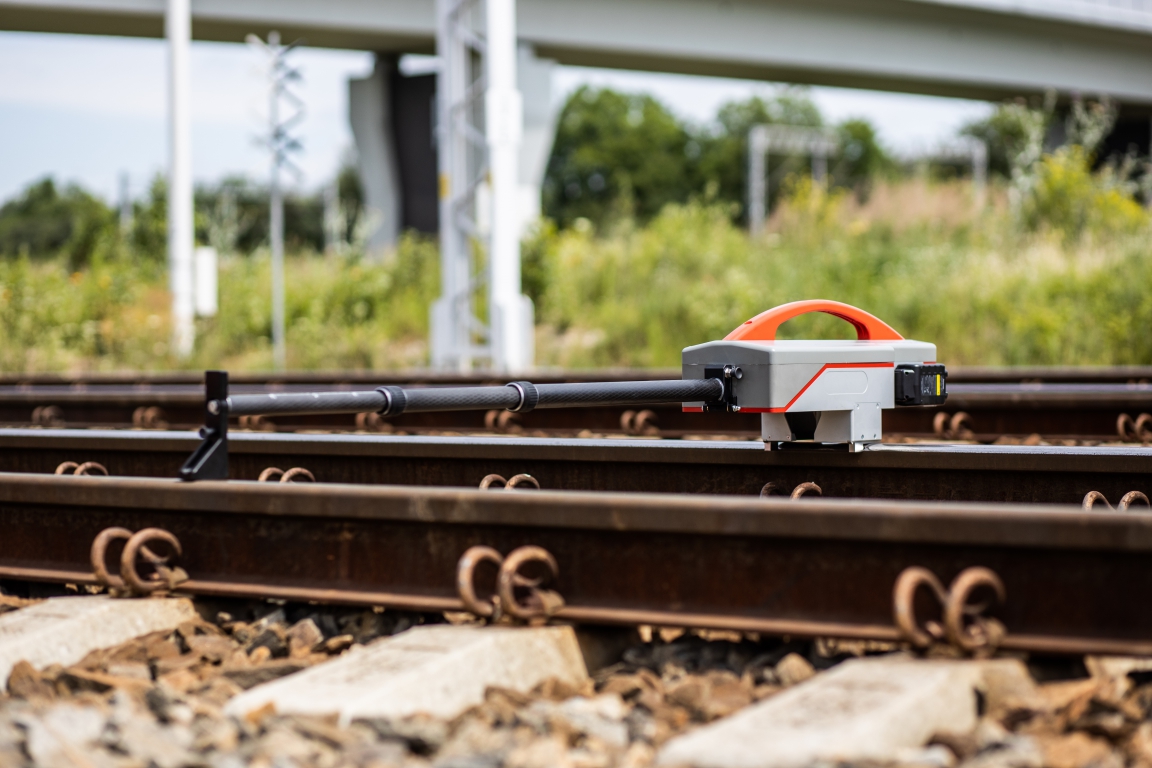

The device is lightweight, reliable, and easy-to-use. It is operated by an application on an Android device. RP2D measures and stores the complete 2D railhead profile. After a few seconds, the device presents the measurement result on the App screen ready to be uploaded to our database solution Dari® along with the calculation of wear according to the standard selected earlier by the user.



Contents:
  • Railprofile 2D device
  • Two pieces of batteries + charger
  • Transport box
  • Railprofile 2D app (AndroidTM)
  • Dari® Software for data analysis, one licence
Benefits:
  • Fast and accurate measurement of any type of rails
  • Measurement results independent of environmental conditions
  • Measurement results displayed immediately after measurement
  • Hot-swappable batteries – charged batteries at hand enable unlimited operating time
  • Measured profiles can be exported as files in RYS, CSV and DXF formats
  • Easy operation of the device during measurements
  • The included Dari® software for data analysis allows for printing measurement reports, archiving and comparing measurement results

Specifications

Cross-section Accuracy:
Rail heads (grinding area) ±0,05 mm
Rail head (wear) ±0,2 mm

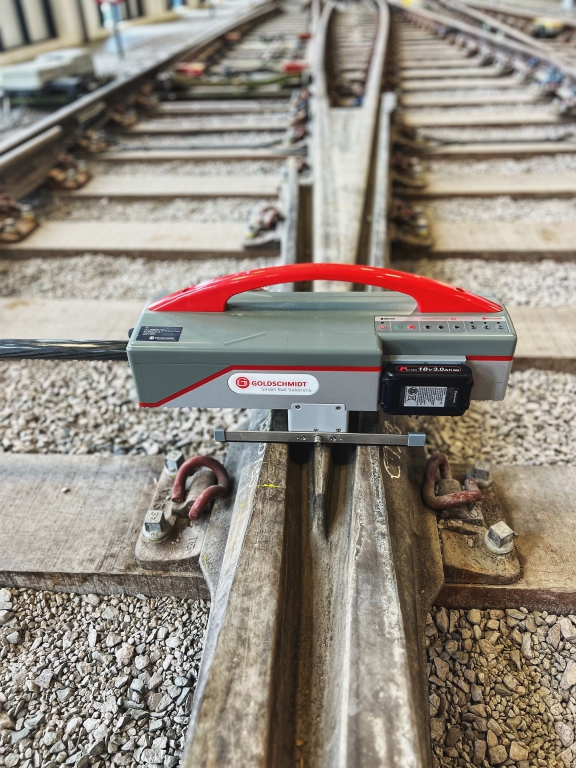

Turnout elements ±0,1 mm
Profile meas. technology Non-contact optical measurement method
Dimensions (L x H x W) for 1435 mm track 1700 x 264 x 228 mm
Weight 9,6 kg
Rail types Vignole and grooved rails
Operating time Up to 8 h
Operating conditions Temperature: -10 ... +50 °C
Humidity: 15 ... 85 %, no condensation
Nominal track gauge 1000 ... 1668 mm
EN standard Compliance with the PN-EN 13231-2 standard
