Wheel measurement

Back to the list
Back to back Gauge: A-Z

Back to back Gauge: A-Z

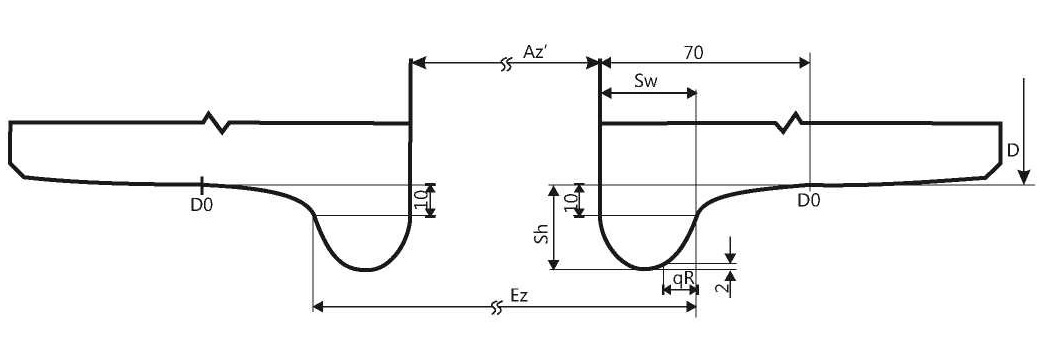

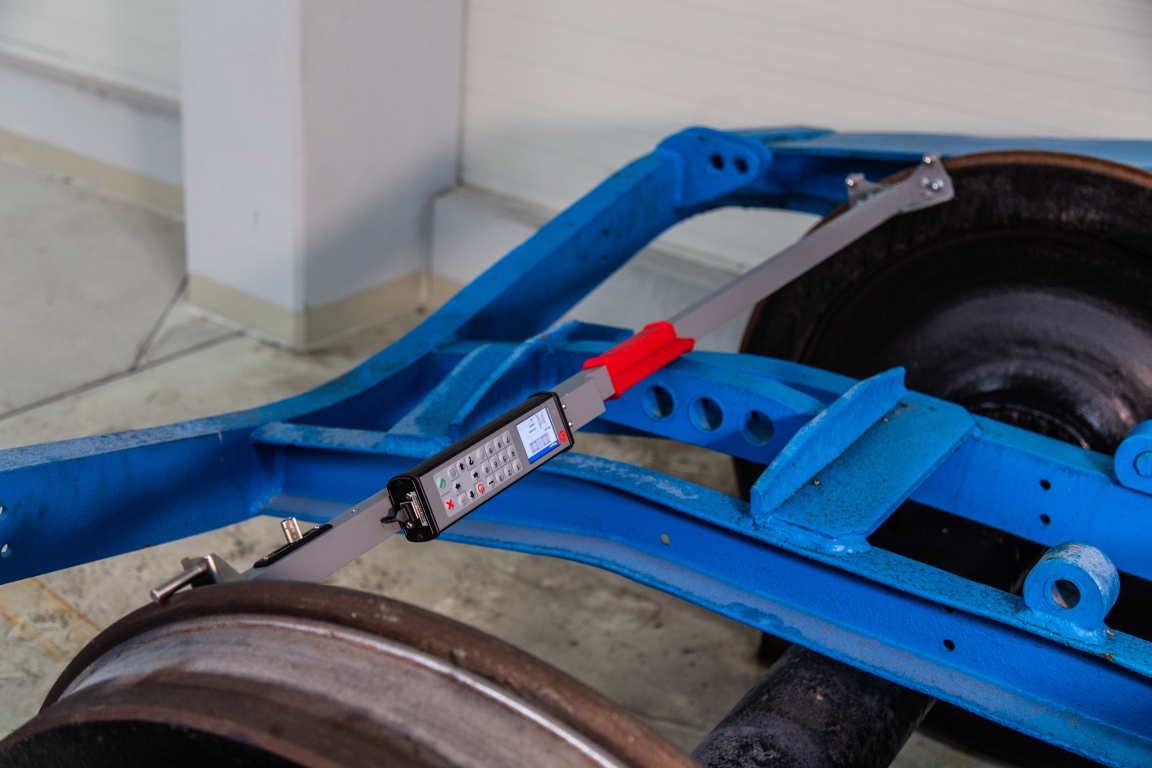

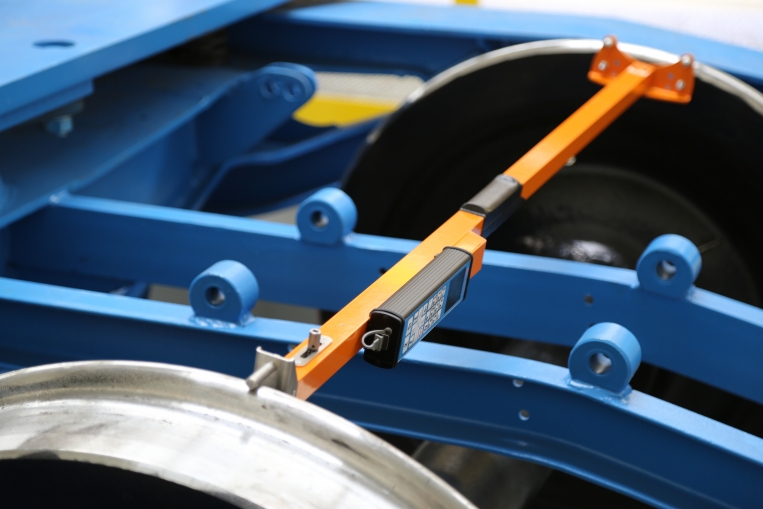

 MEASURING DISTANCES AZ AND AZ' IN WHEELSETS

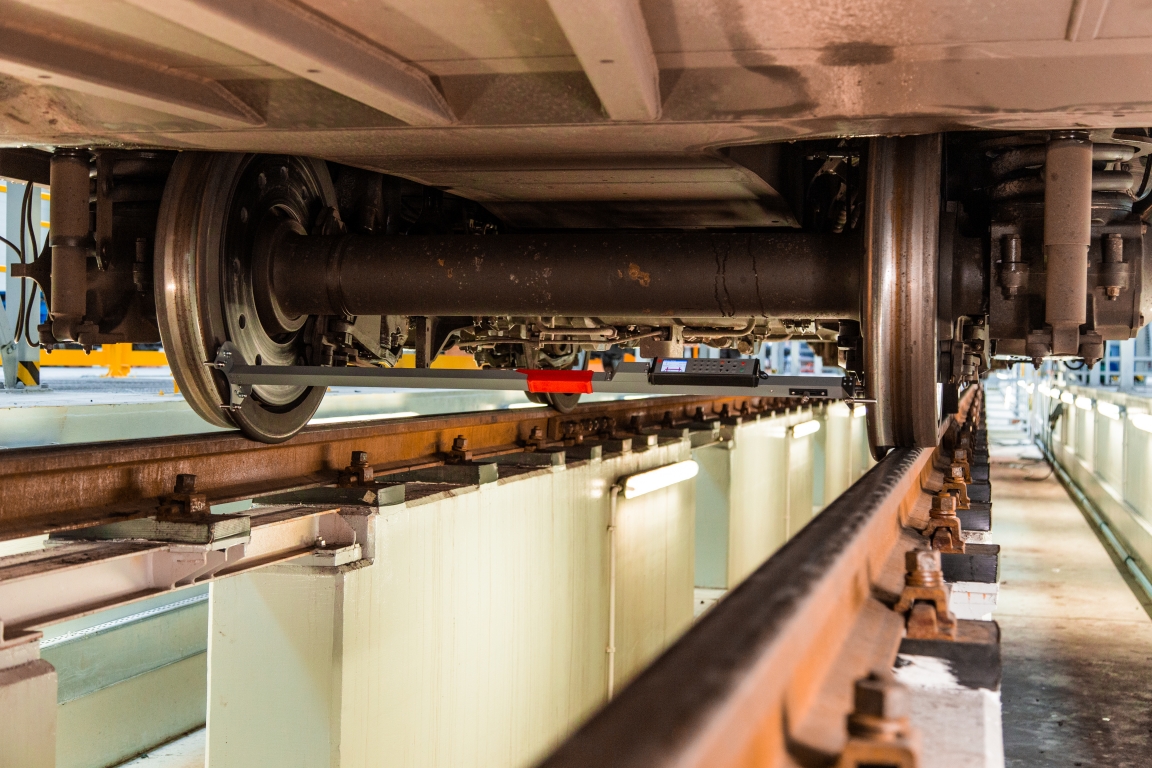

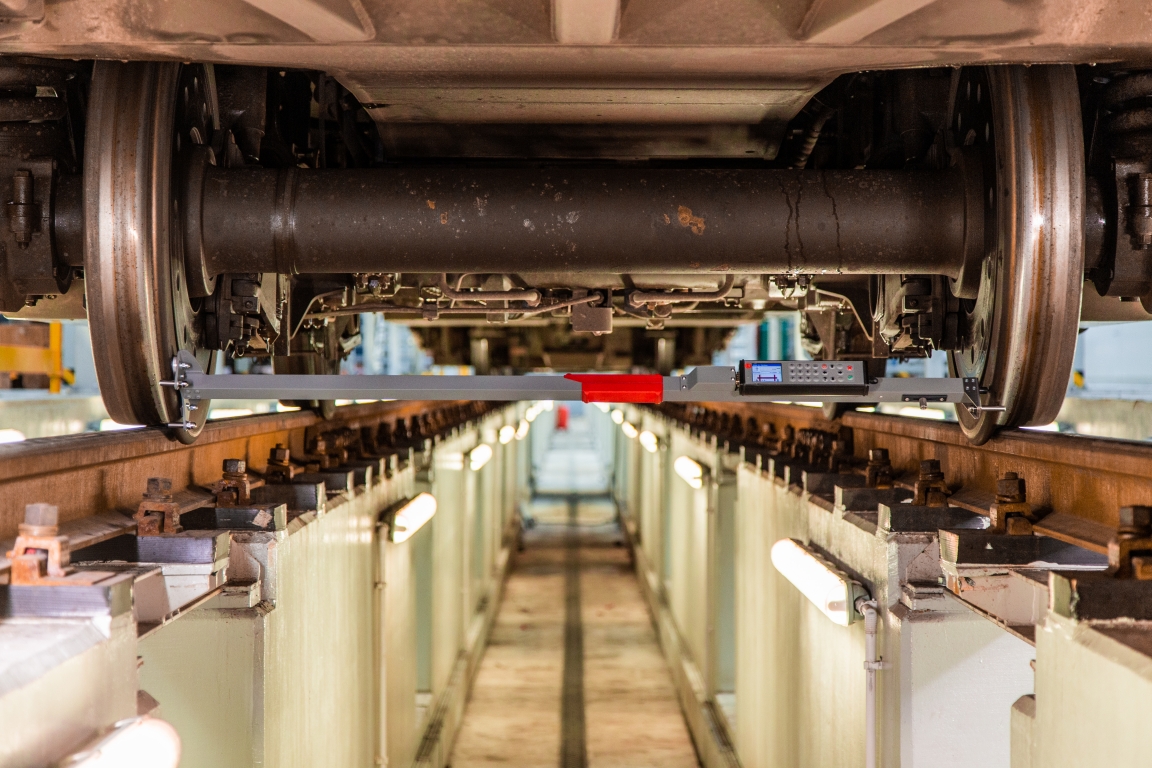

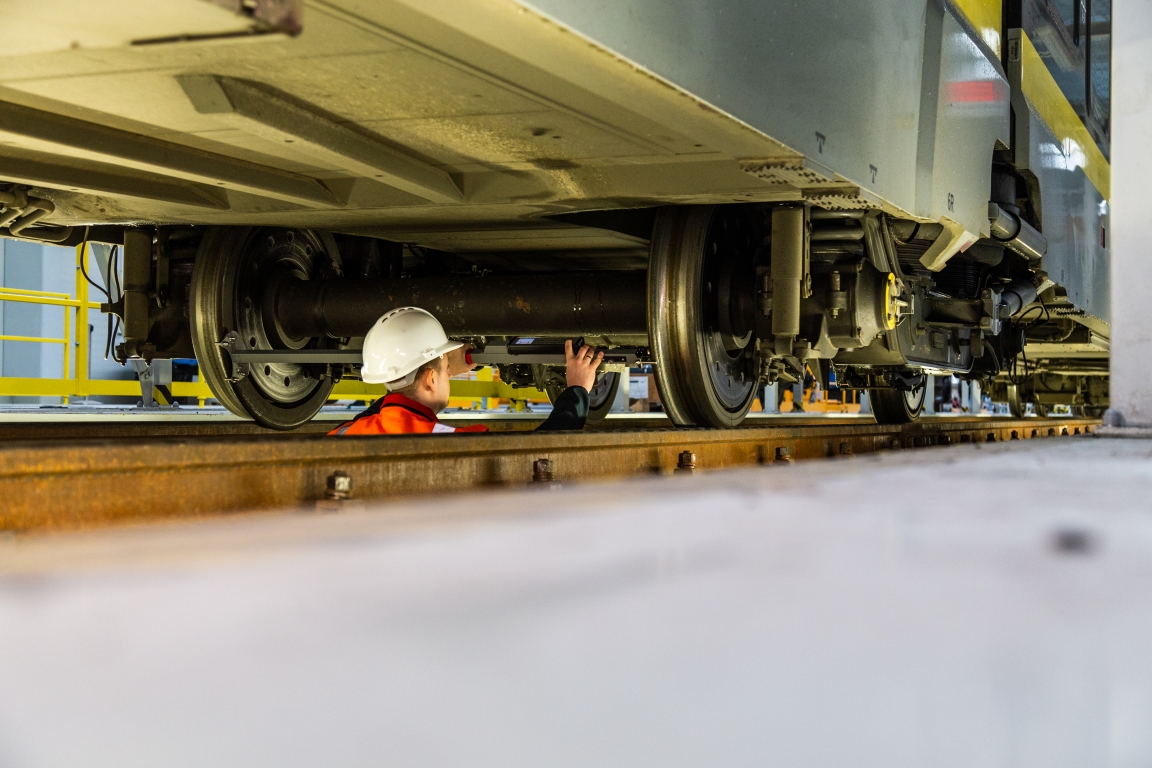

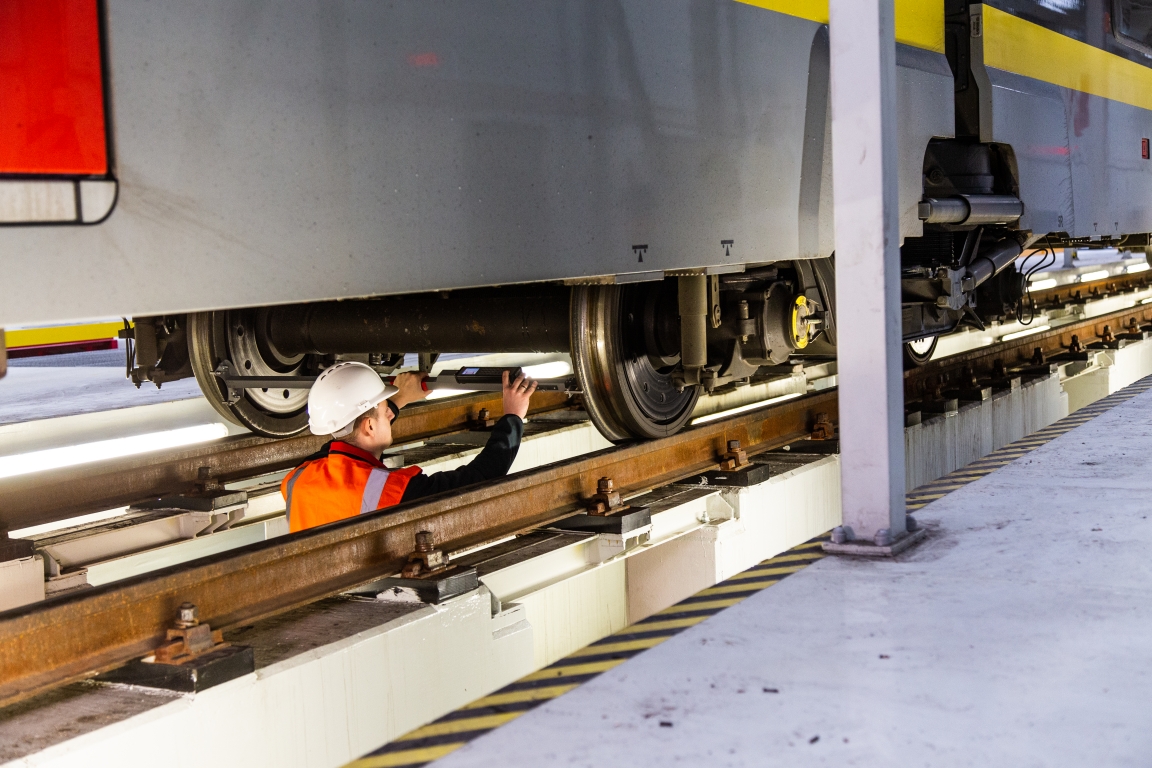

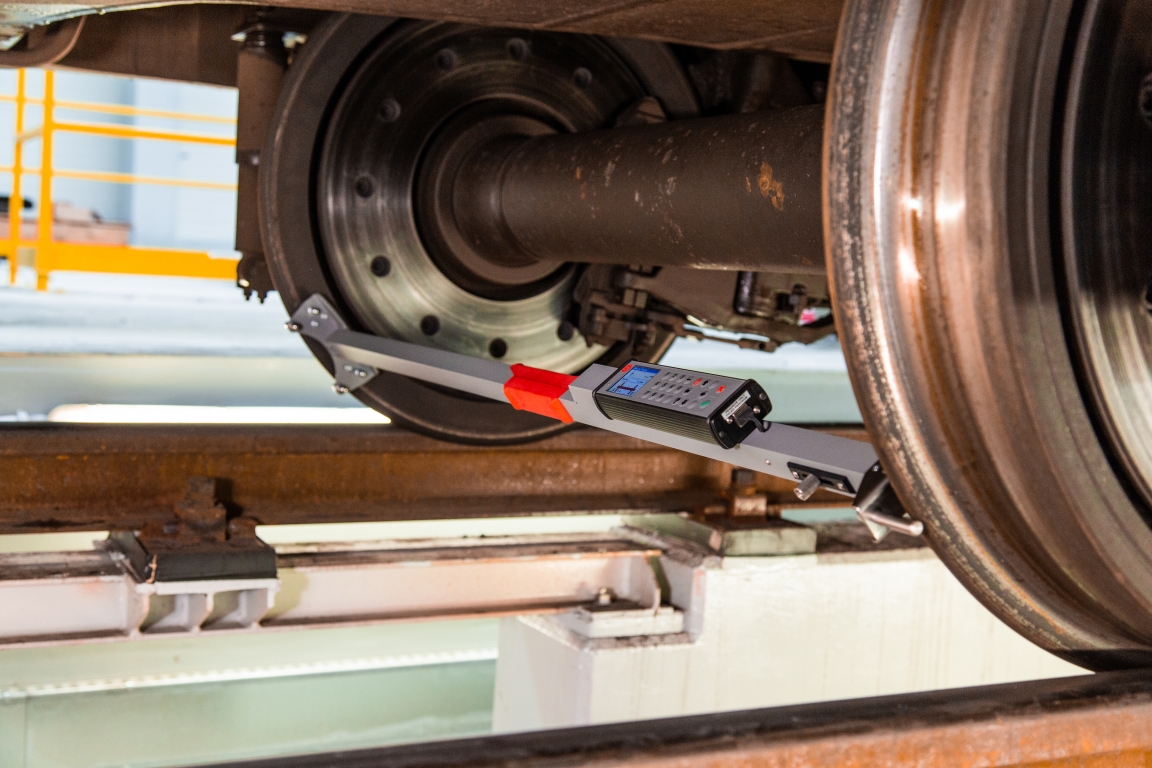

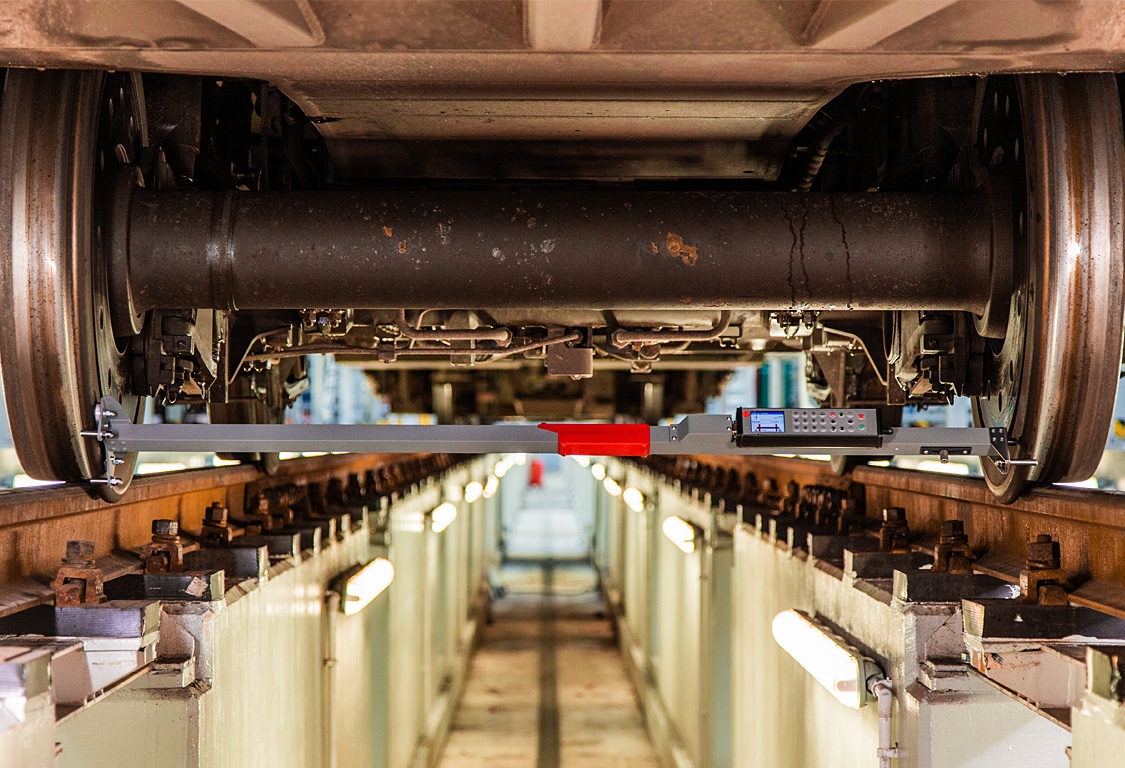

The device is designed to measure the distance between the inner planes of the wheels. The user can specify the limit values of the parameters as required. Measurements can be performed directly on vehicles, i.e. without rolling the wheelsets out.

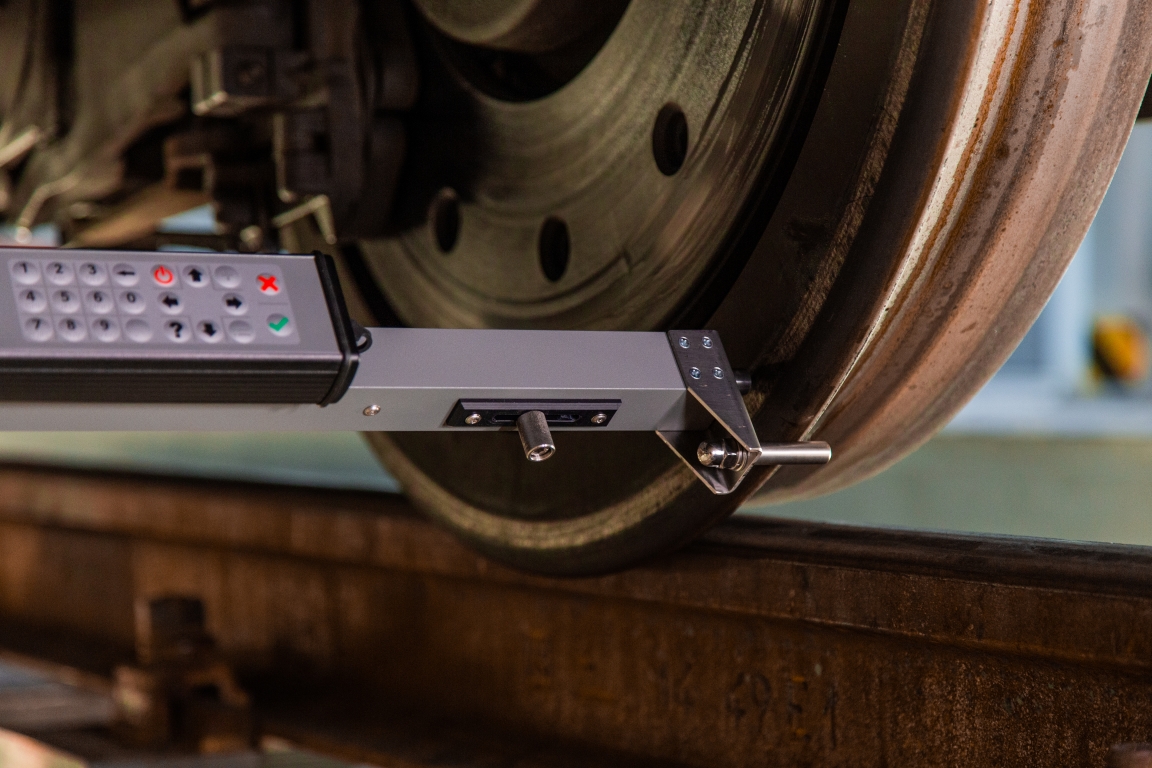

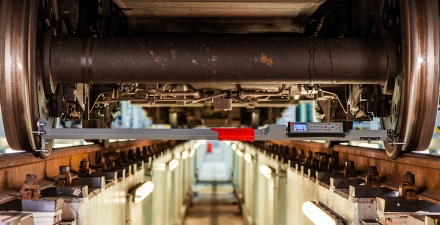

The gauge is equipped with a control panel with the colour backlit display, and a comfortable keyboard. Measurement results and information about the exceedings of the limit values are clearly visible even in a dark inspection pit.


Gauge control panel with the wheelset measurement option and window of (wheelset) measurement preview

The gauge control panel can be detached from the gauge, making it easier to review the results after the measurements have been completed. The transfer of data to a PC is performed via a USB Pendrive.

The gauge is delivered with PC software that allows for: archiving of measurement results, comparison of results, as well as printing of measurement reports. Measurement results can be exported to MS Word, MS Excel and PDF formats. The software delivered with the gauge also allows for collecting measurement results from all wheel measurement devices and generating aggregate reports.

Contents:
  • Back-to-back gauge device
  • Charger for the control unit
  • Transport box
  • PC software, 1 licence
Benefits:
  • Device availability for all dimensions of wheel-sets
  • Evaluation of measurement results for wheels sets, bogies and entire wagons
  • Measurement results independent of environmental conditions
  • Display is easy to read even in direct sunlight
  • Easy transfer of measurement data via USB port
  • Dedicated software for printing measurement reports, archiving and comparing measurement results

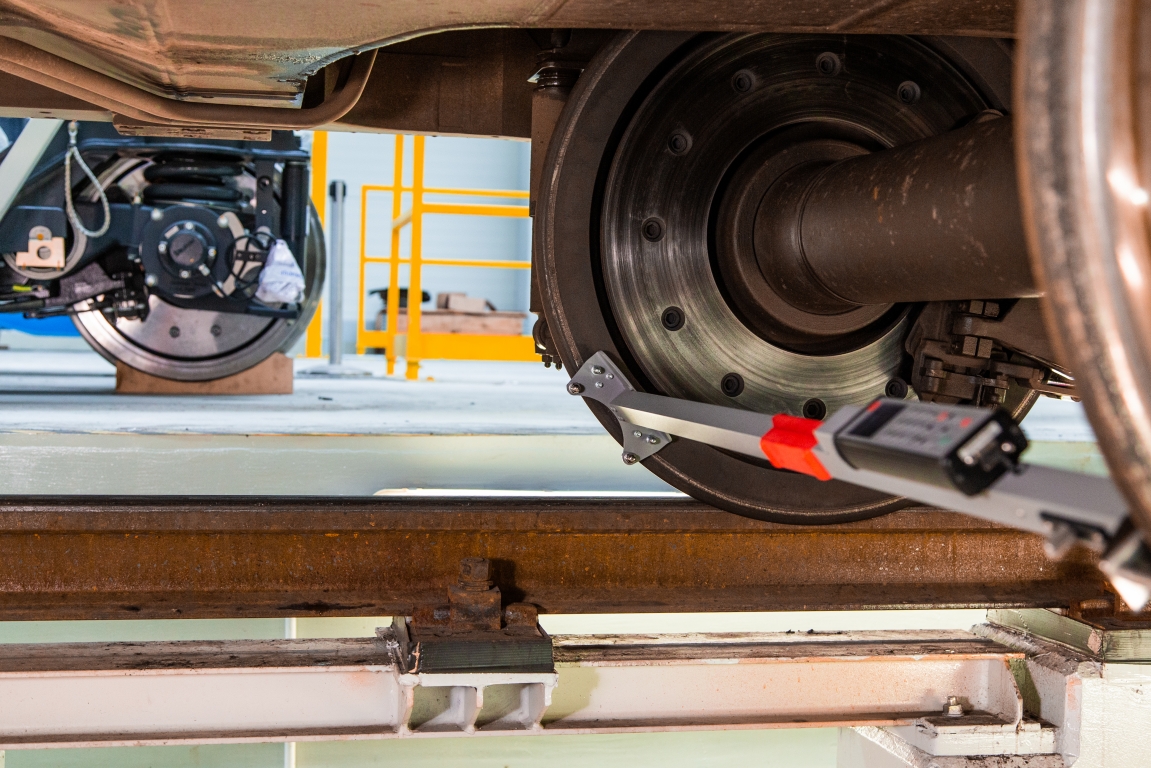

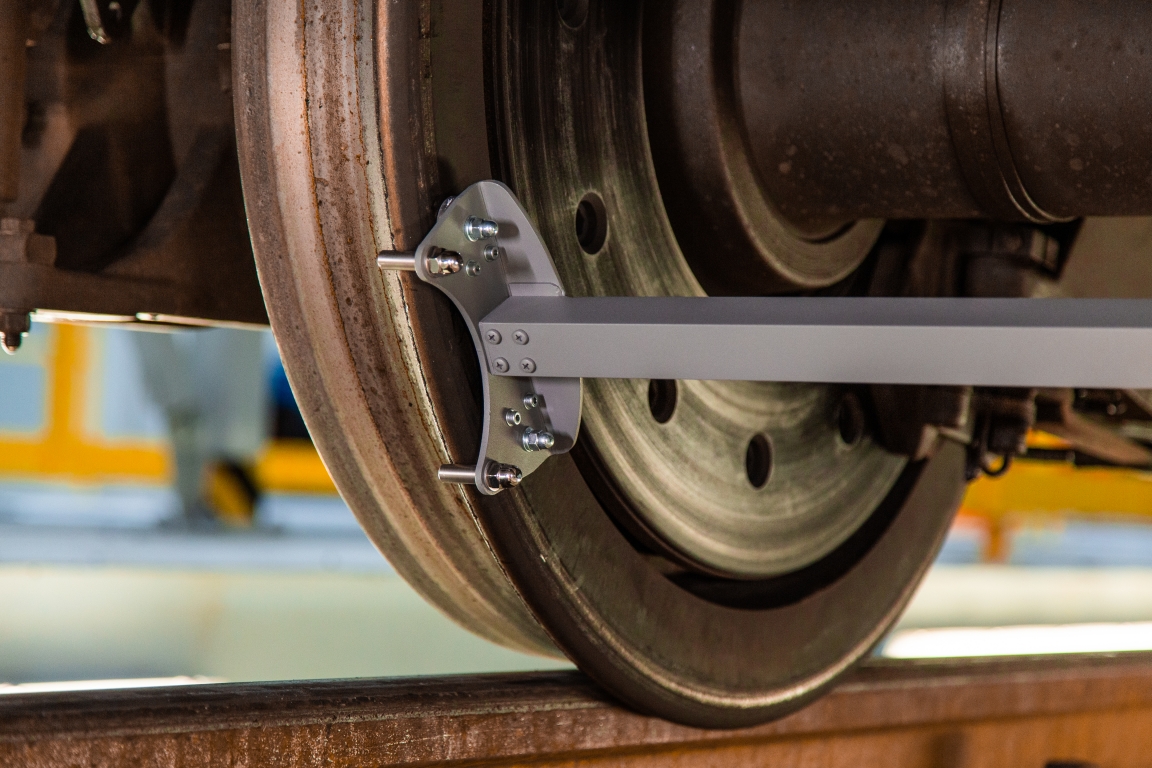

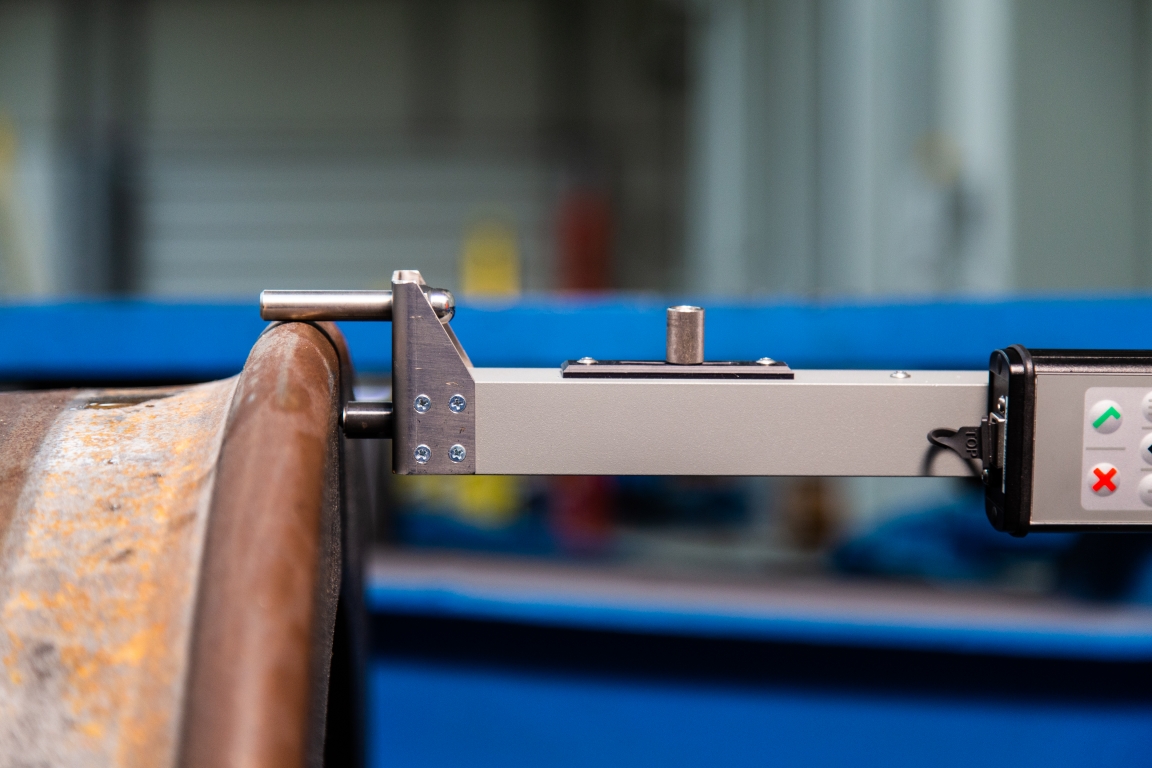

  • Simple and solid basing of the device on the wheel

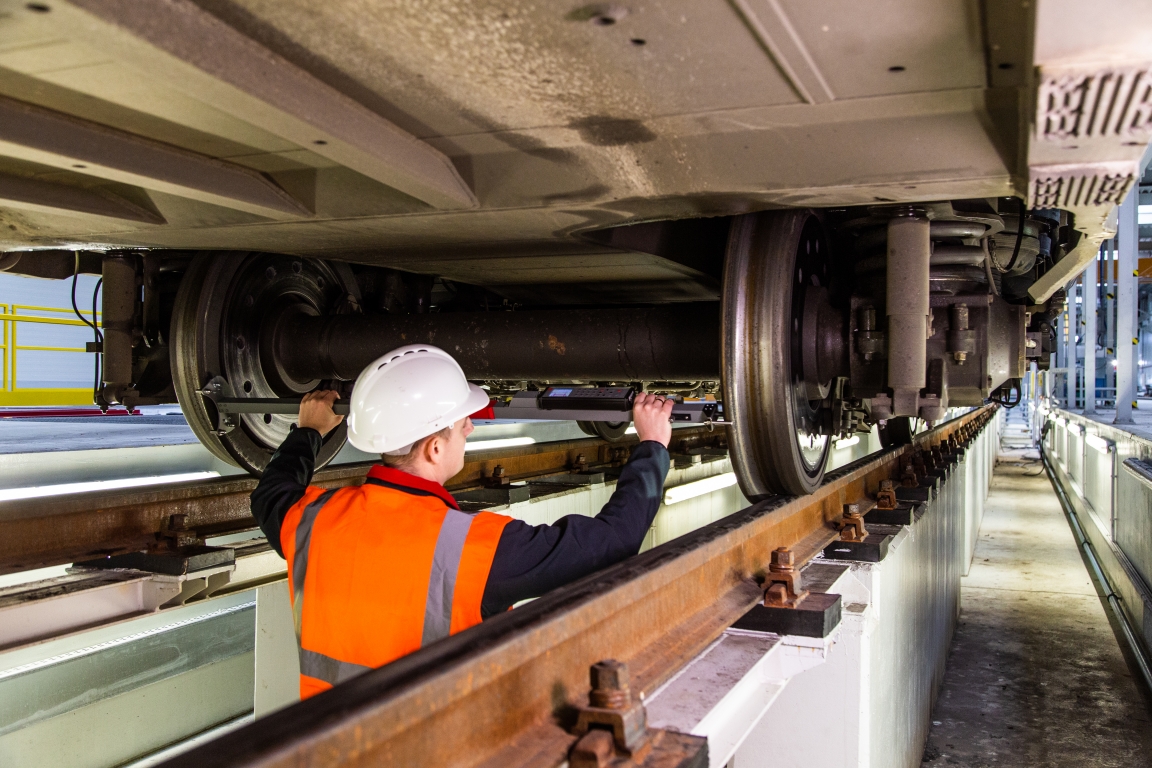

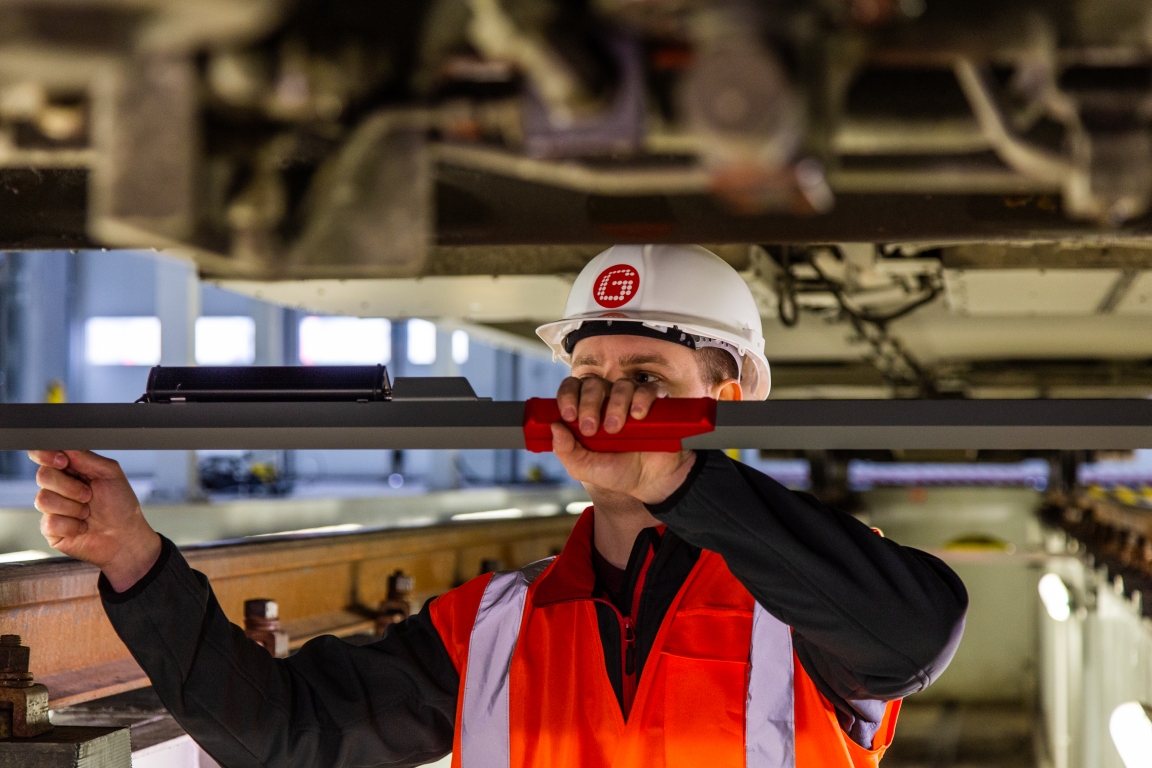

  • User-friendly one-man operation

Specifications

Measuring parameters Back-to-back dimension
Accuracy ±0.1 mm
Ranges ±1360 / -15 mm
Memory capacity 8 000 measurement files
Operating time Up to 20 h
Resolution 0.1 mm
Operating conditions Temperature: -20 … +45 ºC
Humidity: 15 … 85 %, non-condensing
