Electronic Three-Point Wheel Diameter Gauge: WM-3

Electronic Three-Point Wheel Diameter Gauge: WM-3

MEASURING THE DIAMETER OF RAILWAY WHEELS

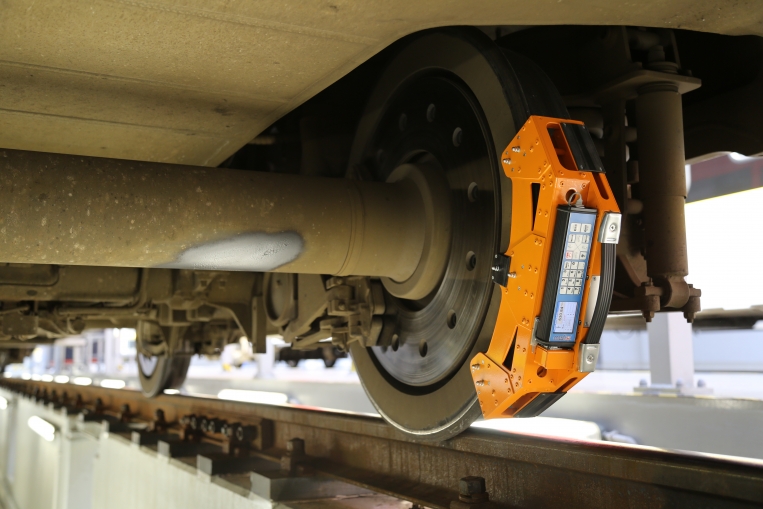

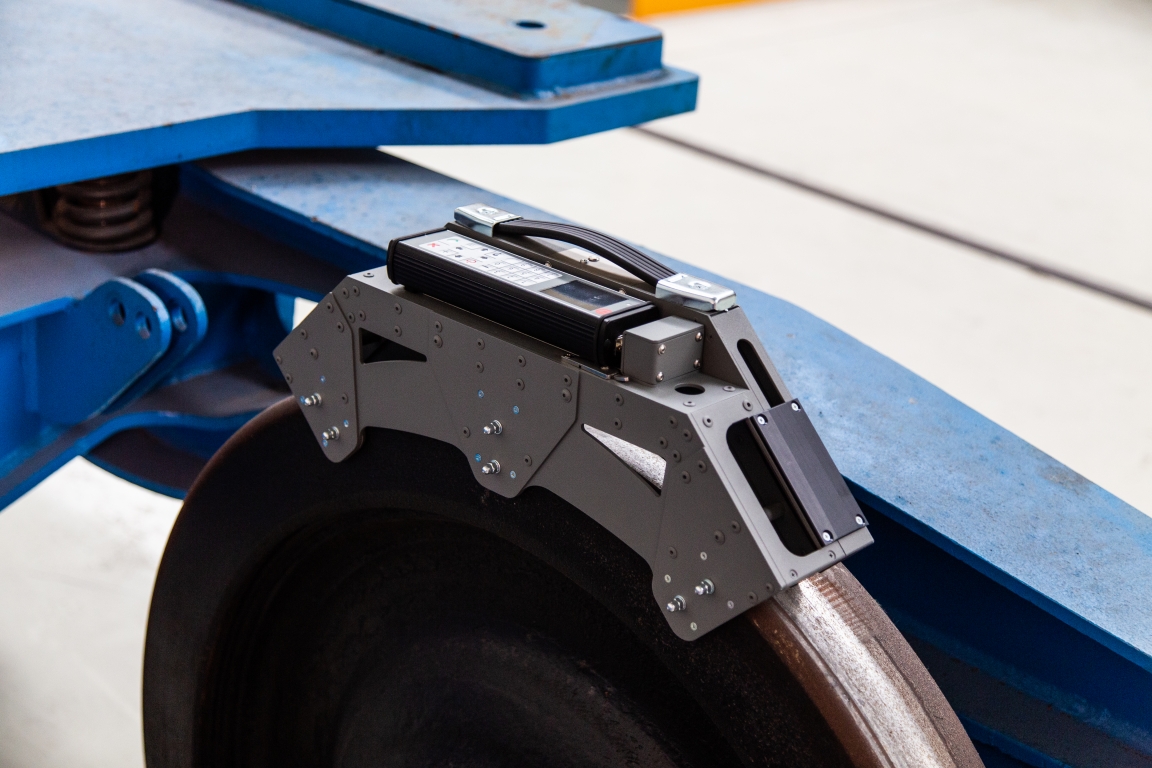

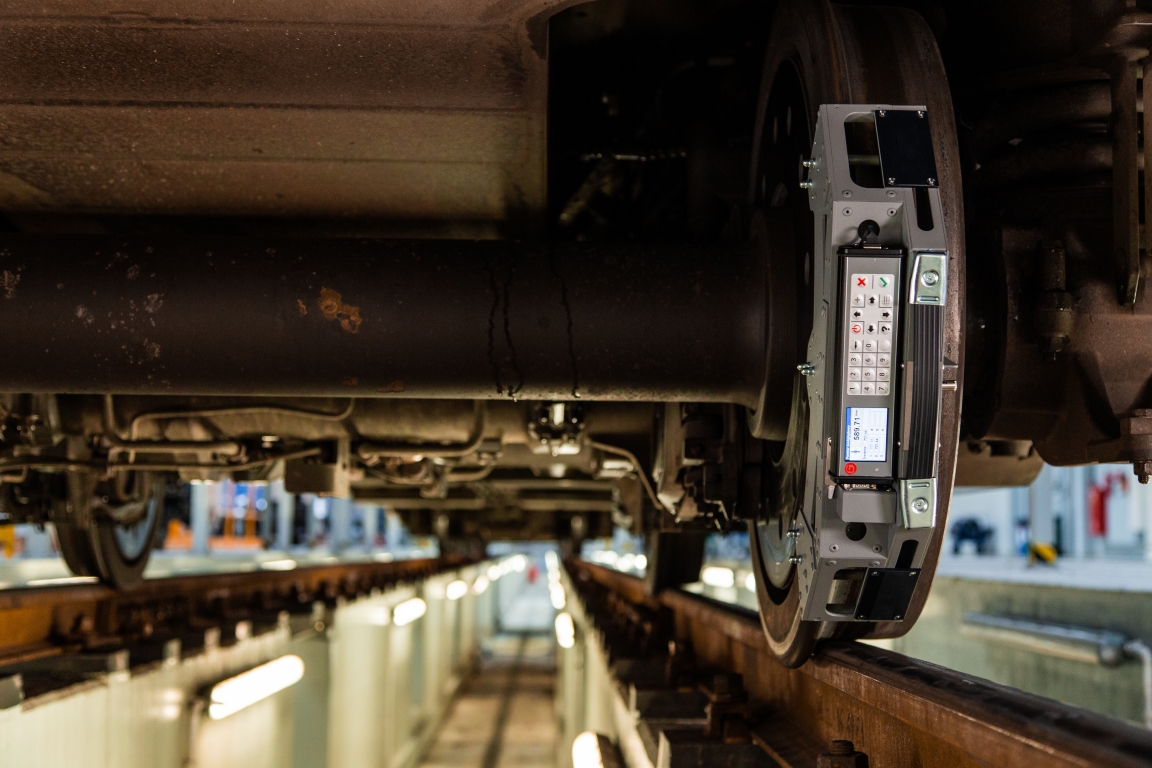

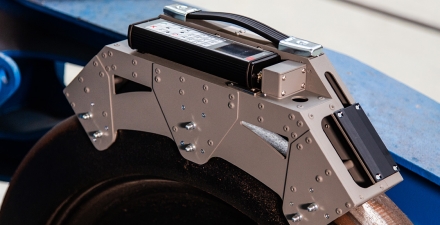

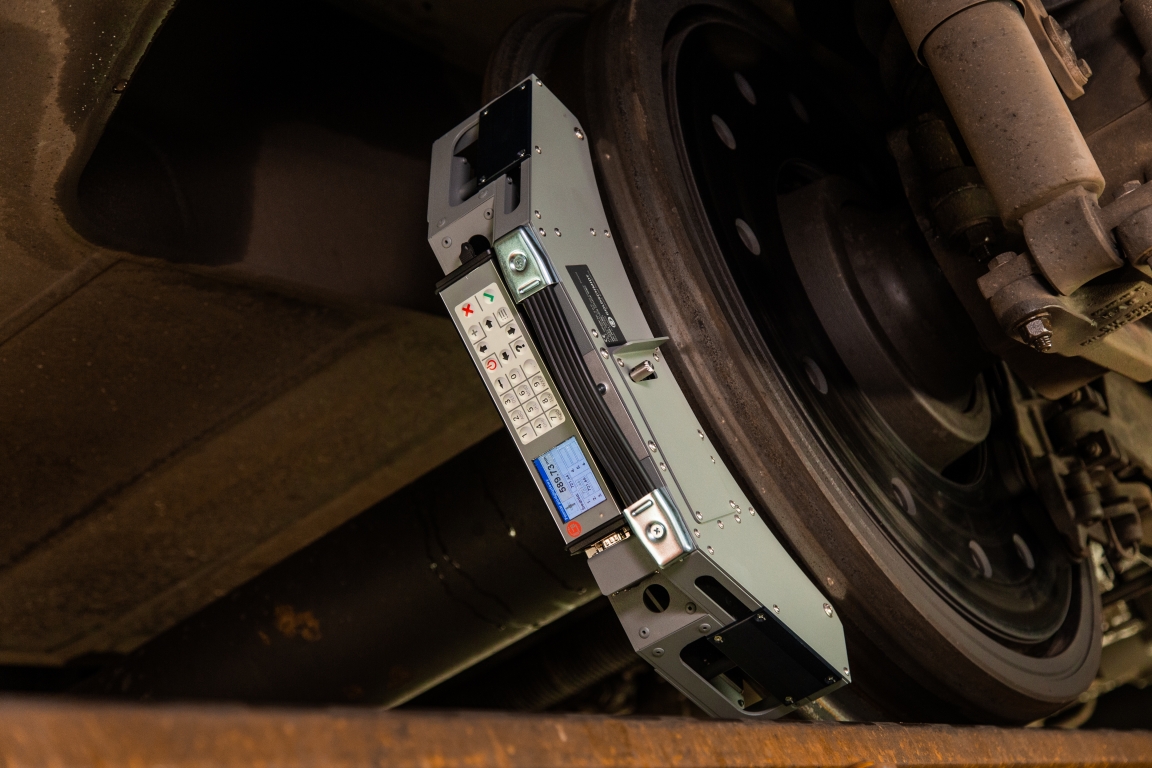

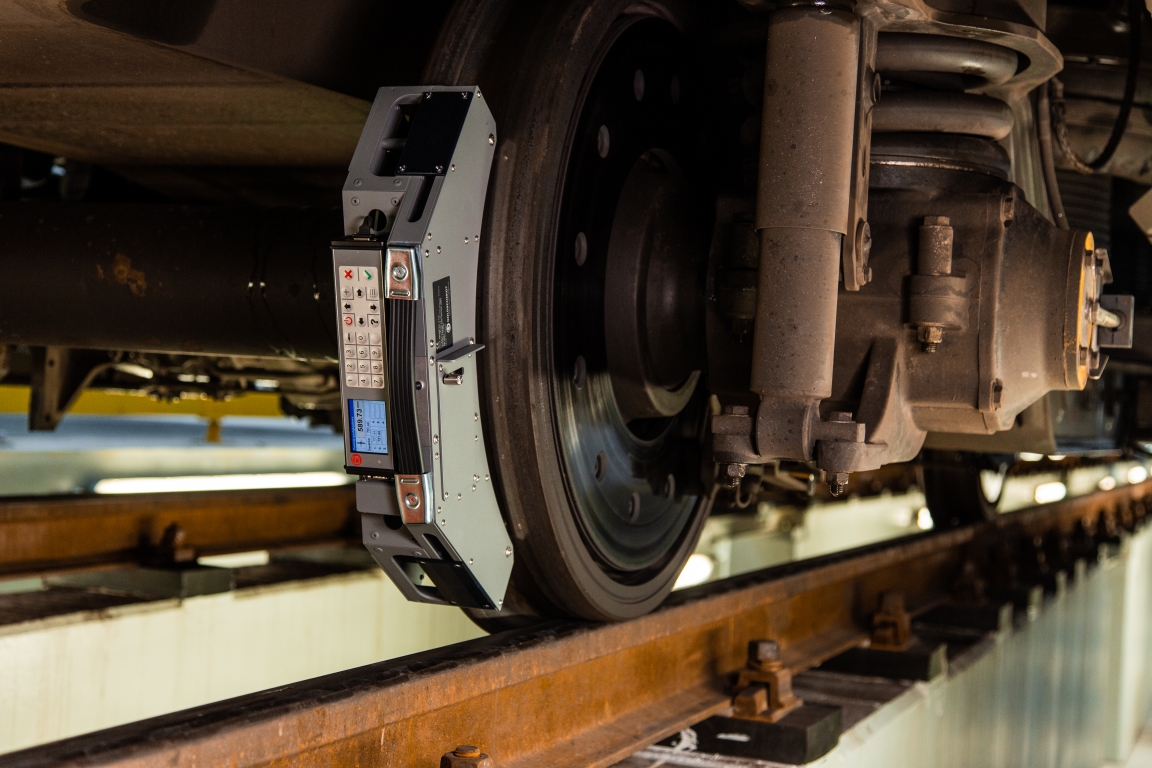

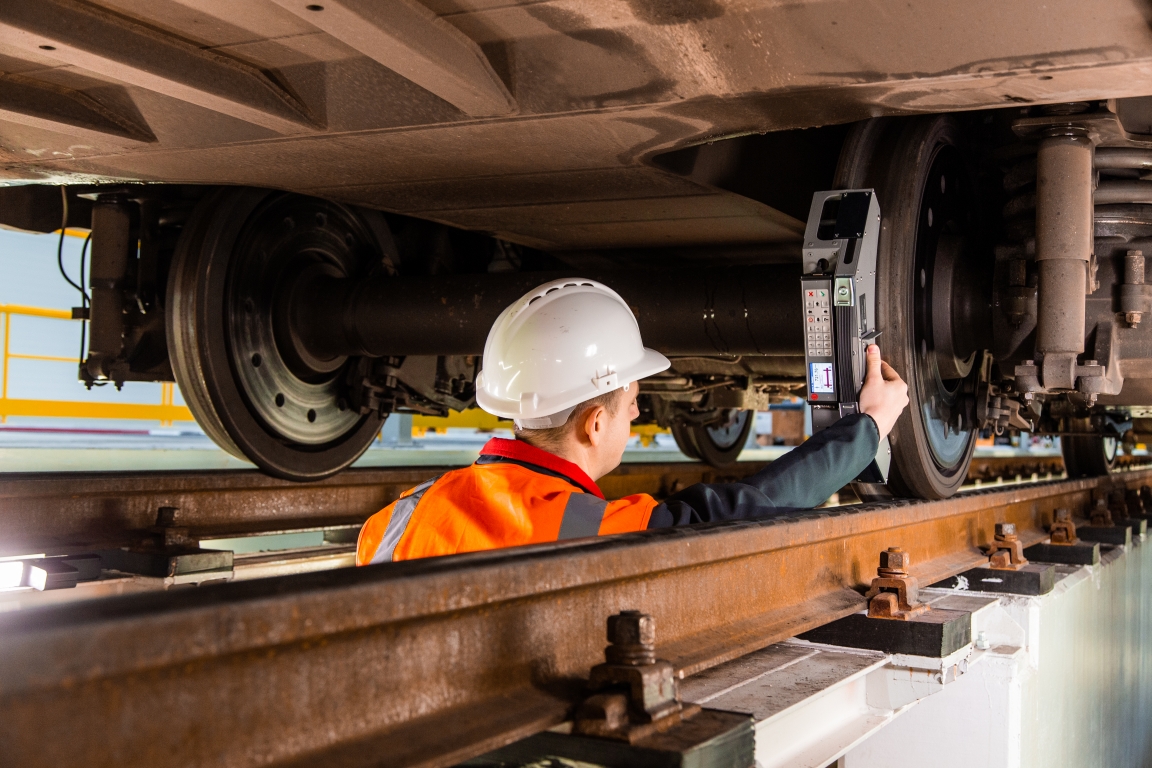

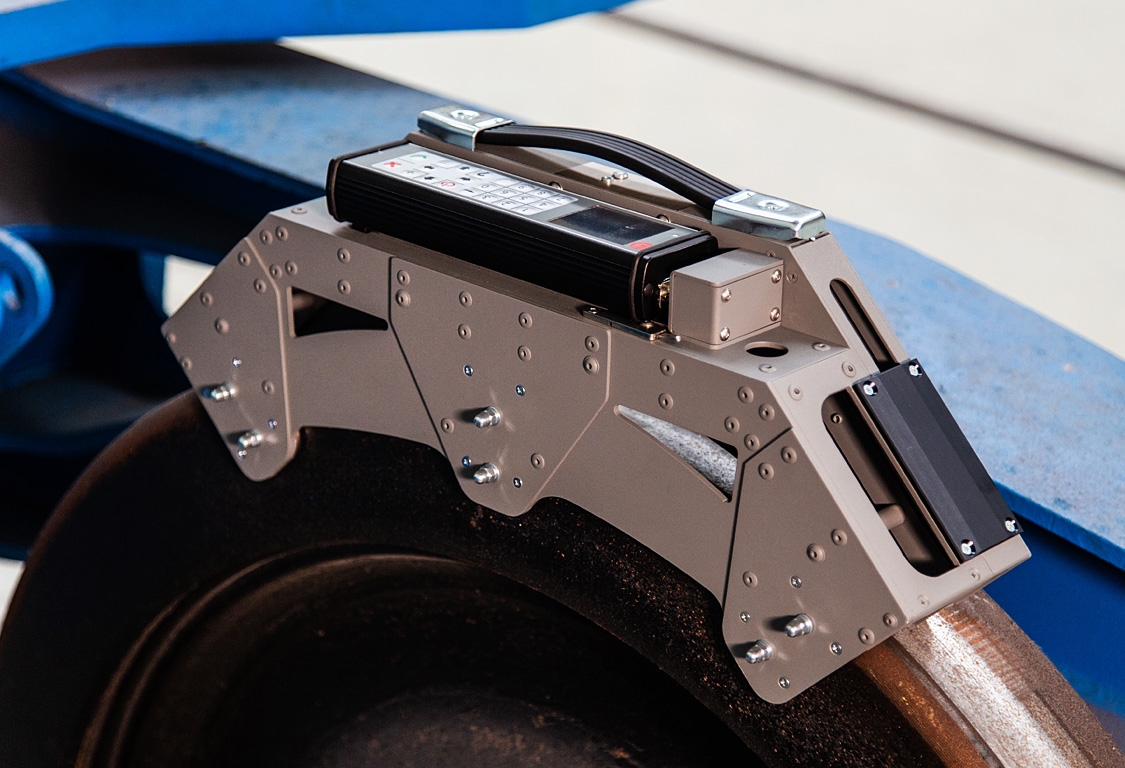

The three-point gauge is designed to perform measurements without the need to dismantle the bogies from under the wagons. The device saves the results of the wheel diameter measurements of the set and then calculates the average of several measurements. The user can specify the limit values of the parameters as required.

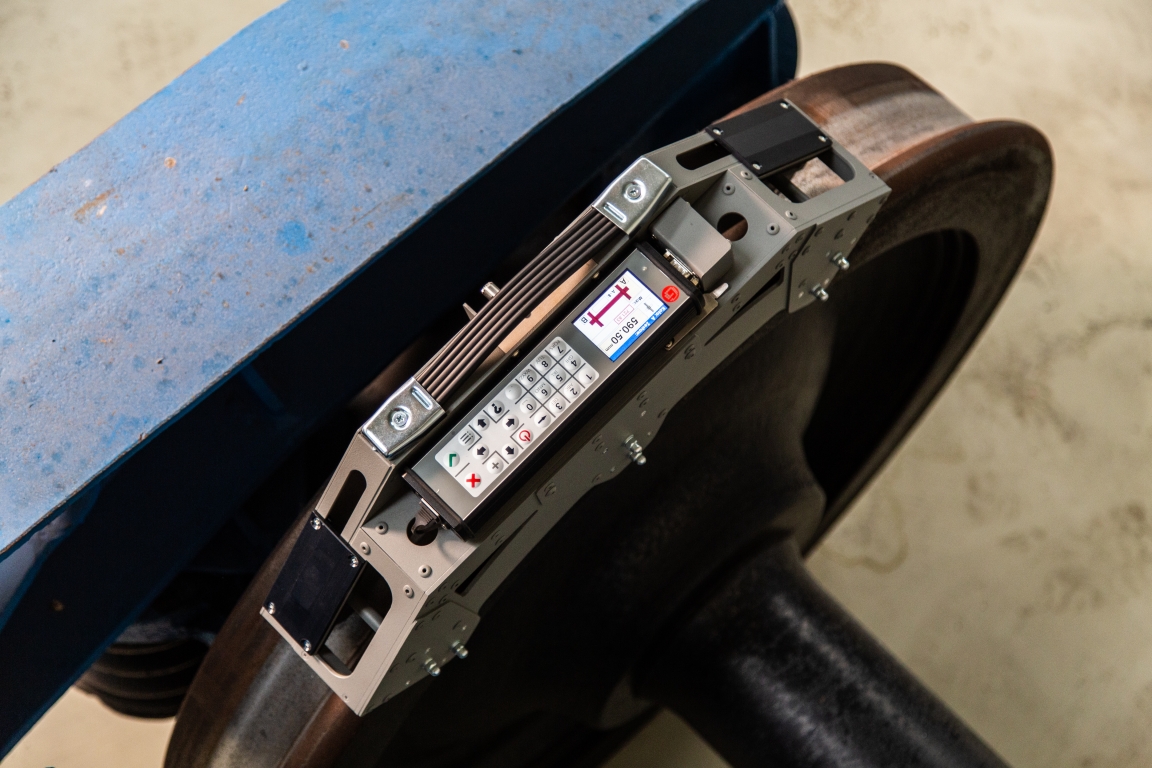

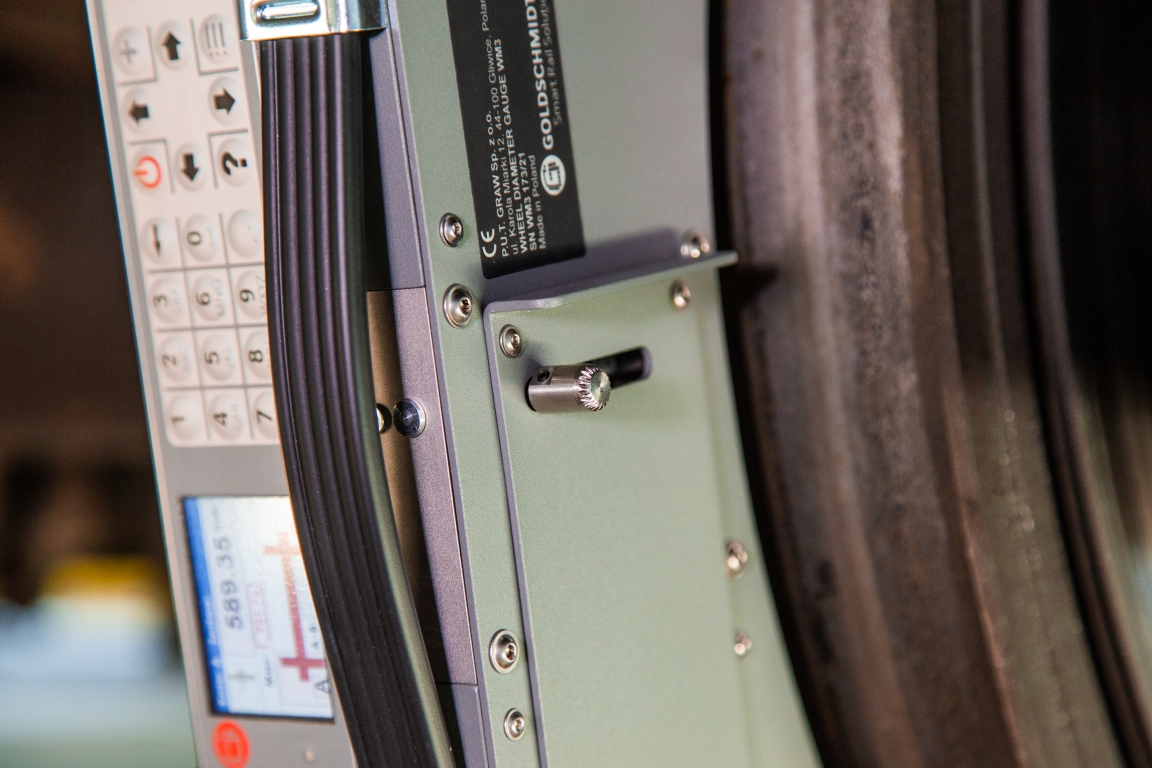

The gauge is equipped with a control panel with colour backlit display, and a comfortable keyboard. Measurement results and information about the exceedings of the limit values are clearly visible even in a dark inspection pit.

The gauge control panel can be detached from the gauge, making it easier to review the results after the measurements have been completed. The transfer of data to a PC is performed via a USB Pendrive.

The gauge is delivered with PC software that allows for: archiving of measurement results, comparison of results, as well as printing of measurement reports. Measurement results can be exported to MS Word, MS Excel and PDF formats. The software delivered with the gauge also allows for collecting measurement results.

Screenshot of the PC measurement data analysis and reporting software delivered with the trolley

Contents:
  • Three-Point Wheel Diameter Gauge device
  • Charger for the control unit
  • Transport box
  • PC software, 1 licence
Benefits:
  • Evaluation of measurement results for wheels sets, bogies and entire wagons
  • Measurement results independent of environmental conditions
  • Display is easy to read even in direct sunlight
  • Easy transfer of measurement data via USB port
  • Dedicated software for printing measurement reports, archiving and comparing measurement results
  • Simple and solid basing of the device on the wheel
  • User-friendly one-man operation

Specifications

Wheels Diameter Accuracy: ±0.1 mm
Ranges 600 ... 1050 mm
650 ... 1250 mm
Weight 3.4 kg
Memory capacity 8 000 measurement files
Operating time Up to 20 h
Resolution 0.1 mm
Operating conditions Temperature: -20 … +45 ºC
Humidity: 15 … 85 %, no condensation
